High Speed Low Force Stress PCB Depaneling Machine PCB Depaneling Equipment With V-Slot

High Speed Low Force Stress PCB Depaneling Machine PCB Depaneling Equipment With V-Slot

Introduction

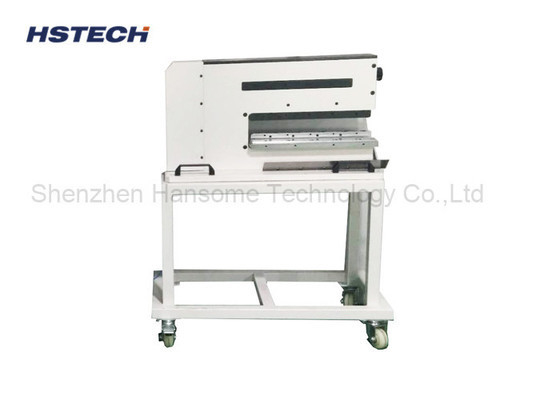

This machine called pneumatic pcb separating machine, also called guillotine type PCB depaneling machine, it's using dual guillotine type blade as the cutting tool, at the same time powered by air pressure to finish the depaneling, it has much better performance than the blade moving pcb separator.

Functional Overview
This equipment is used to split large panels into individual PCB panels.
The special low-stress panel splitting technology can minimize the stress and deformation of the PCB board.
Protect the components and solder joints on the PCB surface during the panel splitting process to avoid product damage.

Main Features
Adopt high-precision positioning and panel splitting mechanisms to ensure panel splitting accuracy and consistency.
The patented clamping mechanism can evenly apply panel splitting force to reduce local stress concentration.
Dual-axis servo motor control to achieve high-speed and smooth panel splitting action.
Equipped with automatic detection function, it can detect abnormal conditions during panel splitting.
Fully enclosed design ensures a clean panel splitting environment.

Working Principle
The PCB panel is placed on the positioning platform and fixed by the automatic clamping device.
The panel splitting mechanism slowly advances along the preset path to cut and separate the PCB.
During the panel splitting process, the clamping mechanism applies uniform force to avoid local stress concentration.
After the panel splitting is completed, the PCB single board is automatically discharged and waits for subsequent processes.

Application Scenarios
Mainly used in the panel splitting link of the SMT patch production line.
Applicable to PCB boards of various materials, including FR4, CEM-3, ceramic substrates, etc.
Especially suitable for the manufacture of electronic products with high requirements for product quality, such as smart phones, tablet computers,

Features

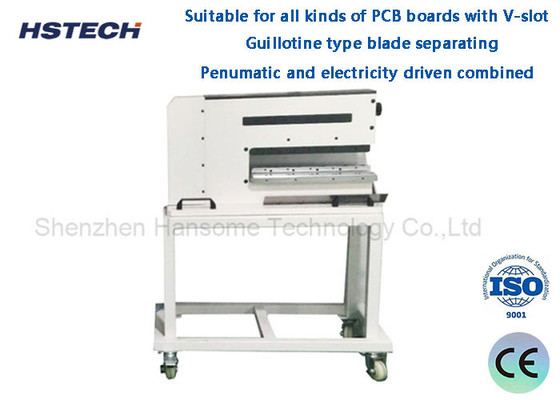

1, Suitable for all kinds of PCB boards with V-slot.

2, Guillotine type blade separating, ultra low force stress at 500-600uE, smooth and flat, no bent and glitch.
3, Penumatic and electricity driven combined.
4, Security: small guillotine only available for board feeding, ensure the safety of the operator.
5, Easy maintanance, operator can handling the machine with easy training.
6, Durable, using import high quality steel made cutting tool.
