High Rank V-Cut Blade Miving PCB Separator PCB Depaneling Equipment With 400mm Length

High Rank V-Cut Blade Miving PCB Separator PCB Depaneling Equipment With 400mm Length

Introduction

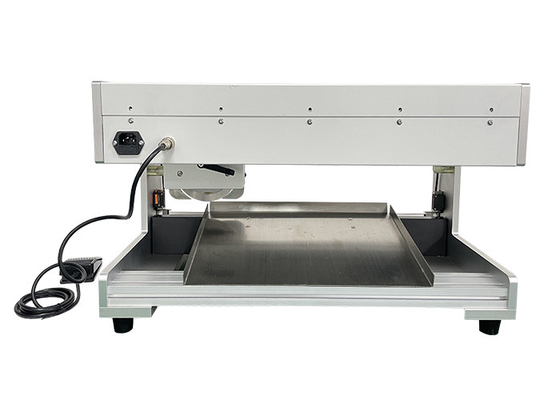

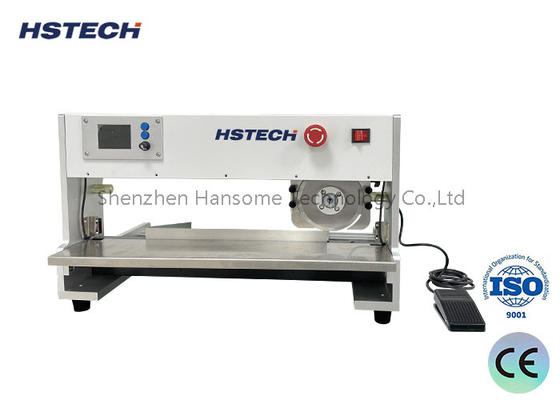

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Main functions

Efficient separation:
The blade movement technology can quickly and accurately separate PCBs and reduce production cycles.

Adaptable:
Suitable for PCBs of different thicknesses and materials, and can handle circuit boards of various sizes.

Precise positioning:
Equipped with a positioning system to ensure accuracy and consistency during the separation process to avoid damage to the circuit board.

Safe operation:
Designed with operational safety in mind, it is usually equipped with a protective cover and emergency stop function.

Application areas

Electronic manufacturing:
Widely used in SMT (surface mount technology) production lines, especially when separating large PCBs.

Repair and maintenance:
Separate circuit boards that need to be replaced during repairs to improve work efficiency.

Advantages

Reduce labor costs:
The automated separation process reduces manual intervention and improves production efficiency.

Improve production efficiency:
The blade movement design makes the separation faster and suitable for mass production.

Reduce losses:
Precise separation technology reduces the risk of damage to circuit boards and reduces material losses.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

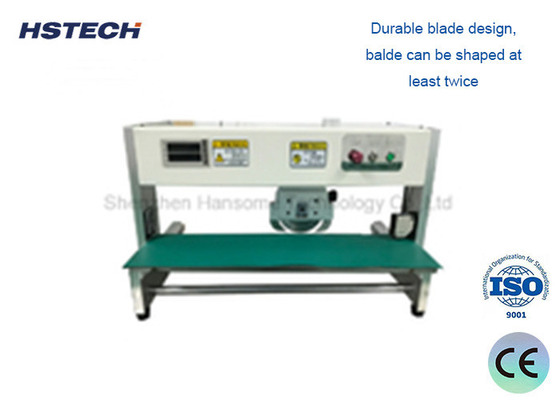

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

Specification
