Modular Design PCB Reject Conveyor PCB Handling Equipment With Panasonic PLC Control

Modular Design PCB Reject Conveyor PCB Handling Equipment With Panasonic PLC Control

Introduction

PCB Reject Conveyor is a transmission device specially used to handle unqualified printed circuit boards (PCBs) that have been tested or inspected.

The main functions are as follows:

Automatic transmission
The conveyor belt mechanism is used to automatically separate unqualified PCBs from the main production line.
Reduce the labor intensity of workers' handling and improve overall production efficiency.

Classification storage
There are independent collection trays or storage areas for storing different types of unqualified PCBs.
Convenient for subsequent rework, repair or scrapping.

Size adaptation
The width and length of the conveyor belt can be adjusted according to the PCB size of different production lines.
Ensure that PCBs of different specifications can be smoothly transmitted and classified.

Speed ​​control
The motor drive can be adjusted to set the optimal transmission speed according to the actual needs of the production line.
Avoid damage to the PCB during the transmission process.

Electronic control
Equipped with a PLC control system, the transmission parameters and alarm functions can be programmably set.
Ensure the reliability and safety of the transmission process.

Anti-static design
Adopt measures such as electrostatic grounding to prevent static electricity from damaging the PCB.
Protect the integrity of unqualified PCBs during rework or scrapping.

Features

1, Reject, inspect and by-pass modes all available.

2, Modular design.

3, Stability enhanced by robust design.

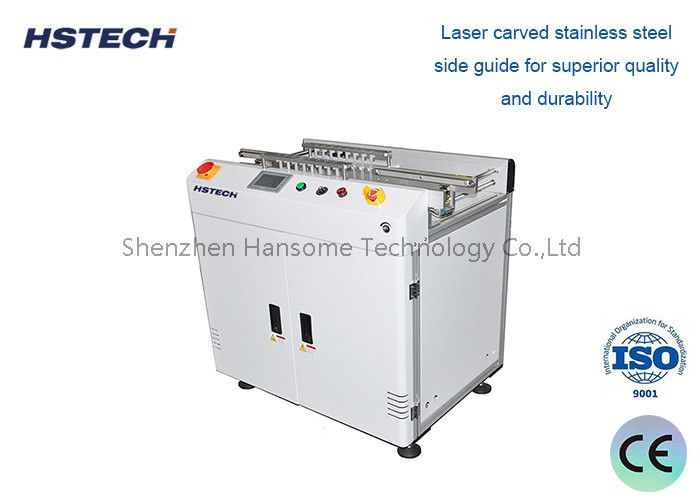

4, Laser carved stainless steel side guide for superior quality and durability.

5, Ergonomic design arm rest.

6, Smooth and parallel width adjustment(lead screw).

7, Different lengths available upon request.

8, Variable speed control.

9,SMEMA compatible.

Specification

Transporting rail

Lifting Sturcture

Electric control
