High Quality Steel Plate Spray Paint Automatic Solder Paste Thawing Machine With Simple Operation

High Quality Steel Plate Spray Paint Automatic Solder Paste Thawing Machine With Simple Operation

Introduce

Automatic solder paste thawing machine, also called solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after taken out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.

Function

1. Fully automatic timed solder paste rewarming machine. One machine has multiple slots and can intelligently reheat multiple cans of solder paste at the same time to ensure the activity of the solder paste; the steel plate of this machine has a baked-painted appearance, with a smooth and tidy surface, fashionable and beautiful.

2. The machine is assembled and produced using imported electrical components;

3. Each can of solder paste is placed in a slot with independent time control. Once the time is set, the solder paste slot will automatically lock. The door cannot be opened before the timer expires. When the set temperature recovery time is reached, the slot will be locked. It will unlock automatically.

4. The machine can be operated with multiple tanks for temperature recovery, and each slot can hold 500G solder paste tanks.

5.Heating and thawing: The equipment heats the refrigerated solder paste to a temperature suitable for use through heating elements or other heating methods, and automatically completes the thawing process.

6.Temperature control: The equipment is equipped with a temperature sensor and a control system, which can accurately control the thawing temperature of the solder paste to avoid excessive heating and degradation of solder performance.

7.Automated operation: Without manual intervention, the equipment can automatically detect the temperature state of the solder paste and complete the entire thawing process. Greatly improve the thawing efficiency.

8.Intelligent management: The equipment can record and display the thawing state of the solder paste, and can be linked with the production management system to optimize production scheduling.

9.Energy saving and environmental protection: Energy-saving heating technology is used to reduce energy consumption. At the same time, no manual operation is required, which improves the safety of the working environment.

10.Versatility: It can thaw multiple groups of solder paste at the same time, or automatically switch different types of solder paste according to production needs.

Specification

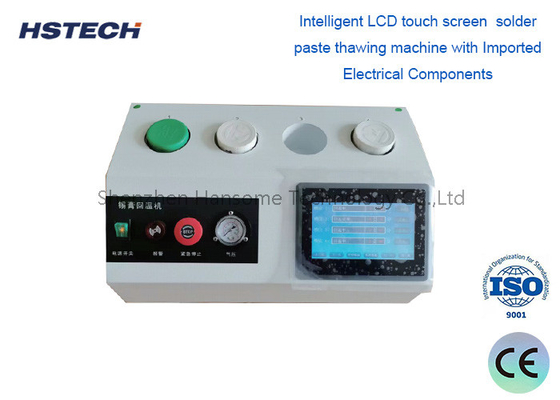

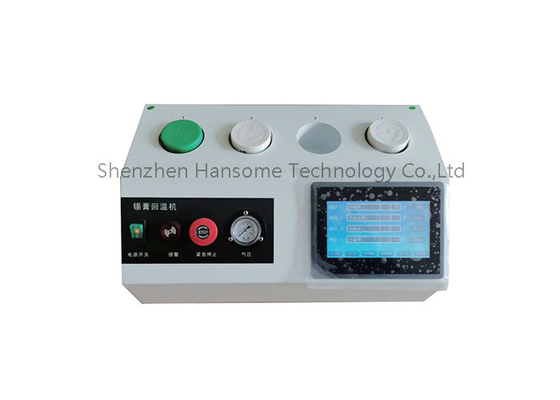

Product physical picture

About Packaging
