High Speed 3 Axi Single Platform Tabletop PCBA Router Machine For Electronic Assembly

Brand Name:	HSTECH
Model Number:	HS-RM-F500
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union,
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Tabletop PCBA Router Machine

Warranty:

1 Year

Control:

Touch Screen

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Control System:

PLC

Power Consumption:

200W

Packaging Details:

Wooden Case

Supply Ability:

50 sets per month

Product Description

High Speed 3 Axi Single Platform Tabletop PCBA Router Machine For Electronic Assembly

Machine introduction:

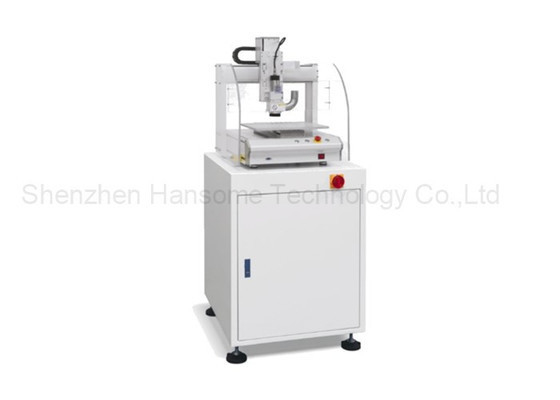

This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.

Compact design

The whole machine is small in size, occupying only 0.5-1㎡
Suitable for use on a workbench or desktop
Convenient and flexible deployment in a laboratory or small production workshop

High-precision processing

Adopting high-precision CNC system and servo motor drive
Able to achieve ±0.05mm positioning accuracy and ±0.1mm repeat positioning accuracy
Ensure stable and reliable PCBA board processing quality

Multi-function cutting

Can perform PCB circuit cutting, drilling, milling and other processing
Support PCBA board processing of various materials, such as FR4, CEM-3, etc.
Suitable for rapid processing of small batches of PCBA boards

Intelligent control

Adopting a friendly touch screen operation interface
Online programming of processing parameters and real-time monitoring of the processing process
Supporting multiple downloading methods such as USB and network

Automated design

Integrated automatic loading and unloading, airflow cooling and other functions
Greatly improve processing efficiency and reduce labor costs
Configured with dust cover and other safety protection devices

Easy to maintain

Parts can be quickly disassembled for daily maintenance
Adopting standard mechanical parts, spare parts are easy to obtain and inexpensive
Long service life, suitable for long-term use by small and medium-sized enterprises

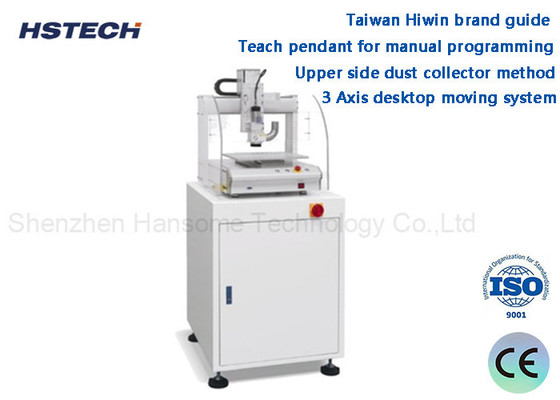

Features:

3 Axis desktop moving system.
Teach pendant for manual programming.
High speed routing spindle, speed at 20000~40000rpm.
Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
Upper side dust collector method, make sure the platform clean.
Suitable for depaneling straight line, arc, and circular connectted boards.
Enclosed operating room, security and low noise.

Specification:

Model	RM-F500
Structure	Single Spindle,single platform
Efficienty cutting length	270220mm(xY)
Cutting types	Straight line, arc, circular
Moving speed	X/Y/Z axis 30025090mm/s
Dust Collection method	Upper collection
Spindle	20000~40000rpm
Routing Spindle	Max40000rpm
Cutting speed	1-100mm/s adjustment
Cutting accuracy	±0.03mm
Repeat accuracy	±0.01mm
Programming	Teach box
External connect	USB
Router kit	milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply	220V/110V,50/60Hz
Board thickness	0.8-3mm
Dust collector size	600500500mm
Dust collector power	750W,1HP
