High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder

Brand Name:	HSTECH
Model Number:	HS-DH6331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder

Introduction

The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time. Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Specification

Model	HS-DH6331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	600300300100100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. Feeding system: adopting suction feeding technology, single screw and single lock to ensure stable and efficient feeding.
2. Operation interface: desktop visual interface, easy to operate, can be connected with automatic production line.
3. Six-axis control: wide range of movement to meet complex processing needs.
4. Multi-screw silo: improve feeding efficiency and flexibility.
5. Dual station: improve productivity and reduce cost.
6. Adaptable: Quickly change screw guides to adapt to different specifications.
7. Convenient operation: simple interface, can operate multiple machines at the same time.
8. File storage: large capacity storage, support hundreds of files, easy to call.

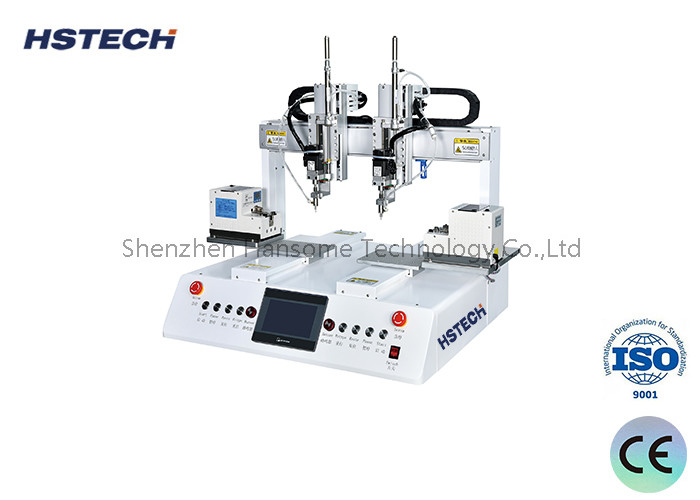

High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder 0

High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder 2
