Single Screw Feeder Touch Screen Screw Fastening Machine with Simple Programming

Single Screw Feeder Touch Screen Screw Fastening Machine with Simple Programming

Brand Name:	HSTECH
Model Number:	HS-TS5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Blowing / Suction Feeding

Axis:

5 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Single Screw Feeder Touch Screen Screw Fastening Machine with Simple Programming

Introduction

Designed to be extremely user-friendly, this screw locking machine is quick and easy to program and can be mastered in less than 10 minutes of instruction. To operate the machine, the user simply moves the screwdriver with a hand motion to precisely position the screw locking holes. Not only that, the machine is manufactured with thicker and more durable materials, as well as aluminum construction to ensure its sturdiness and durability. It is also equipped with electrical components of well-known brands to further enhance its performance and reliability.

Specification

Model	HS-TS5331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. Suction feeding, single screw and single lock design.
2.Desktop visual operation, compatible with automatic production line.
3.6-axis operation, wide range of movement.
4.Support multi-screw bin suction feeding.
5. Dual station design, improve efficiency and reduce labor.
6.Adaptable to M1-M6, only need to change the screw guide.
7. Easy operation, support multi-machine operation.
8. Hundreds of processing files are stored, each file supports 1000 screw positions.

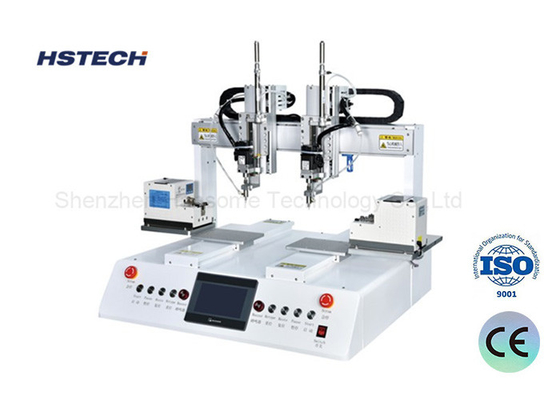

Single Screw Feeder Touch Screen Screw Fastening Machine with Simple Programming 0

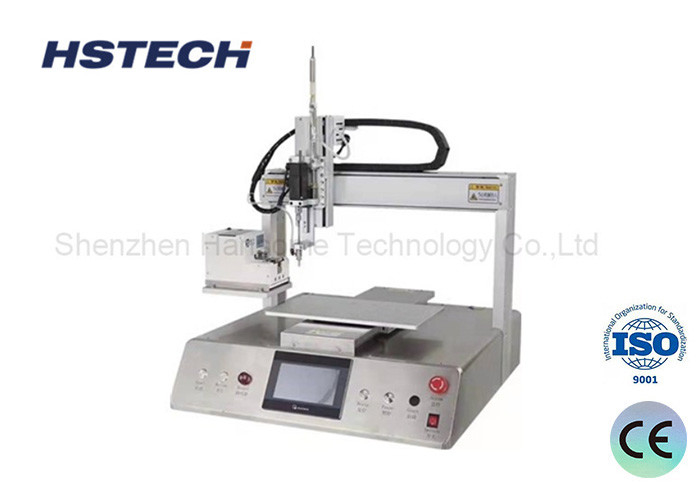

Single Screw Feeder Touch Screen Screw Fastening Machine with Simple Programming 2
