Single Screw Feeder Touch Screen Screw Fastening Machine for M1-M6 Screws

Single Screw Feeder Touch Screen Screw Fastening Machine for M1-M6 Screws

Brand Name:	HSTECH
Model Number:	HS-TS5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Blowing / Suction Feeding

Axis:

5 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Single Screw Feeder Touch Screen Screw Fastening Machine for M1-M6 Screws

Introduction

This screw locking machine has been carefully designed with the user experience in mind, making it incredibly easy to operate. The programming process is simplified to the extreme, and the user can easily master its operation in less than 10 minutes of brief instruction. In actual operation, the user only needs to gently move the screwdriver, and the machine can quickly and accurately locate the screw locking holes, which greatly improves work efficiency.

Specification

Model	HS-TS5331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. Suction feeding, single screw locking design.
2.Desktop visualization operation, compatible with automatic line.
3.6-axis wide motion, flexible operation.
4.Support multi-bin inhalation feeding.
5.Dual station design, save manpower and improve efficiency.
6.Adapt to M1-M6, just change the rail.
7. Easy to operate, support multi-machine.
8. Rich storage, file support thousands of points of positioning.

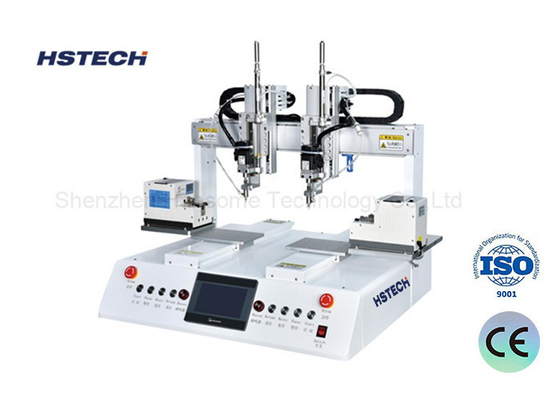

Single Screw Feeder Touch Screen Screw Fastening Machine for M1-M6 Screws 0

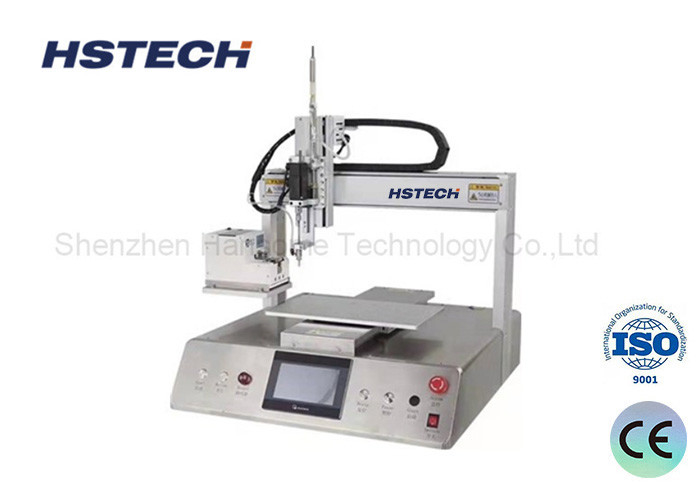

Single Screw Feeder Touch Screen Screw Fastening Machine for M1-M6 Screws 2
