Single Screw Locking Machine for a Wide Range of Applications, Easy to Program

Single Screw Locking Machine for a Wide Range of Applications, Easy to Program

Brand Name:	HSTECH
Model Number:	HS-TS5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Blowing / Suction Feeding

Axis:

5 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Single Screw Locking Machine for a Wide Range of Applications, Easy to Program

Introduction

The screw locking machine is designed for convenience and programming is quick to learn in 10 minutes. Precise positioning, sturdy and durable, made of thick material and aluminum structure. Famous brand electrical components added for reliable performance.

Specification

Model	HS-TS5331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. Inhalation feeding.
2.Desktop visualization, compatible with automatic lines.
3. 6-axis operation, wide range of motion.
4.Multi-screw silo inhalation feeding.
5.5-axis double-station, high efficiency and low consumption.
6.Applicable to M1-M6, change the rail immediately.
7. Easy operation, multi-machine support.
8. Hundreds of files storage, thousands of nails positioning.

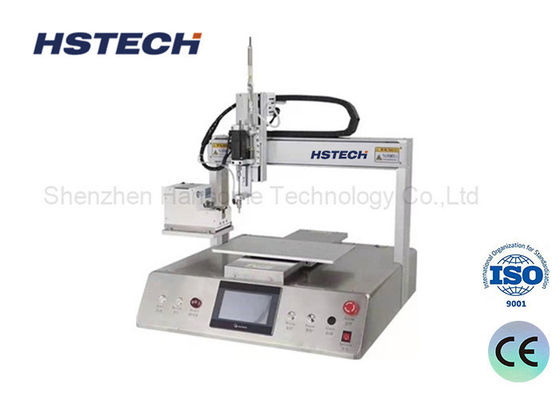

Single Screw Locking Machine for a Wide Range of Applications, Easy to Program 0
