High Speed Pneumatic PCB Depaneling Equipment for Precise SMD PCBA or Thin Plates

Brand Name:	HSTECH
Model Number:	HS-310L
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Pneumatic PCB Depanelizer

Other Name:

V-CUT PCB Separator

Voltage:

AC100-240V

Pcb Length:

0~ 360mm

PCB Thickness:

0.1~2.0mm

Part Top Height:

40mm(max)

Part Bottom Height:

20mm(max)

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb,LED Board

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

High Speed Pneumatic PCB Depaneling Equipment for Precise SMD PCBA or Thin Plates

Introduction:

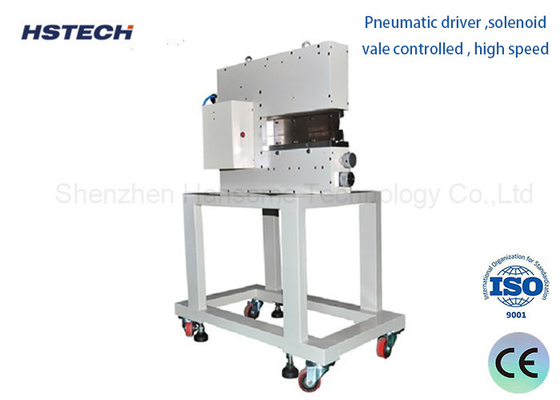

1. Pneumatically driven and electric control , sample design. There have sensor device in the machine ,cuttting board one time with lowest cut stresses.HS-310 apply for separate precise SMD PCBA or thin plates.

2. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process,improve products quality .

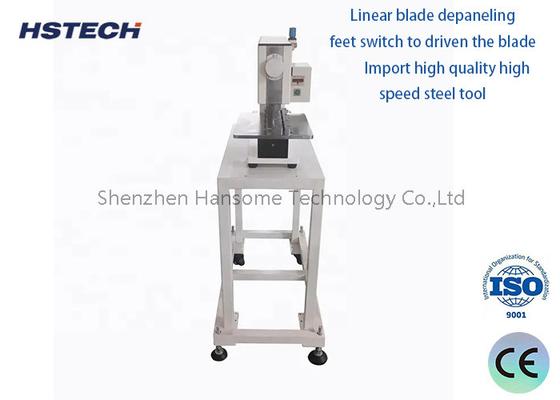

3. Due to the special design of the blade ,boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without cutting stress.

Features and functions

Working principle:
The Pneumatic PCB Depanelizer uses compressed air as a driving force to split PCBA panels by cylinder or vacuum adsorption.

Compared with traditional mechanical cutting, this pneumatic splitting method can greatly reduce the risk of damage to the PCBA edge.

High-precision splitting:
The Pneumatic Depanelizer can accurately split along the predetermined line of the PCBA board to ensure that the size of each separated PCBA is consistent.
The splitting accuracy can usually reach ±0.1mm, meeting the high-demand PCBA production needs.

Flexible adaptation:
The equipment can handle PCBA panels of various sizes and shapes with good flexibility and adaptability.
The splitting line and force parameters can be flexibly adjusted according to actual production needs.

Efficient production:
The Pneumatic Depanelizer has the characteristics of high automation and simple operation.
It can greatly improve the production efficiency of PCBA splitting and shorten the manufacturing cycle.

Low-loss design:
The pneumatic splitting method can minimize the damage and burr problems on the PCBA edge.
It is beneficial to improve the yield rate of PCBA and the reliability of subsequent processes.

Specification:

Product name	PCB depanelizer
Model	HS-310L
Part-up height	Max 40mm
Part-down height	Max 20mm
Air supply	5Kgf/cm
Output	12.5tons(gross)
Efficient cutting length	1-360mm
Linear blade size	36043.56mm
PCB thickness	0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove )
Blade material	Import high quality high speed steel tool
Separating speed	1-300mm/s
V-cut thickness	0.3-3.5mm
Air consumption	200-400(L/min)
Machine size	700325400mm
Weight	130kg
Suitable board	All V-cut boards

Application boards:

Guilotine Blade 40mm Height PCB Depaneling Equipment 400L/min 0

Guilotine Blade 40mm Height PCB Depaneling Equipment 400L/min 1

High Speed Pneumatic PCB Depaneling Equipment for Precise SMD PCBA or Thin Plates 2

High Speed Pneumatic PCB Depaneling Equipment for Precise SMD PCBA or Thin Plates 4
