SMEMA Signal PCB Handling Equipment SMT Conveyor With ESD Flat Belt For PCB Buffering

SMEMA Signal PCB Handling Equipment SMT Conveyor With ESD Flat Belt For PCB Buffering

Introduce

The SMT conveyor is suitable for the connection between SMT and AI production lines. It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components. It can also be used for signal connection with other equipment. The connecting platform is divided into single track, double track, telescopic lift. Today we will introduce the working principle and product features of the docking station.

Features

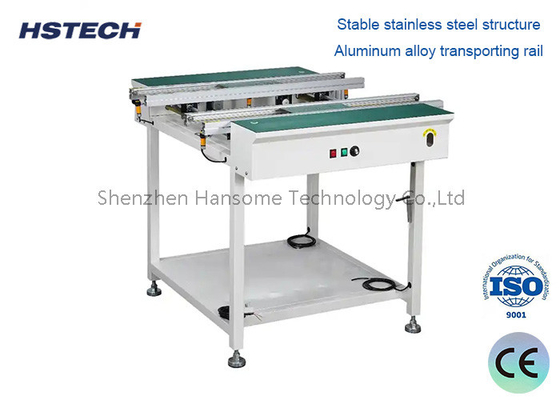

1, Thickness stable stainless steel machine body.

2, Max 390mm PCB width, hand crand width adjustment.

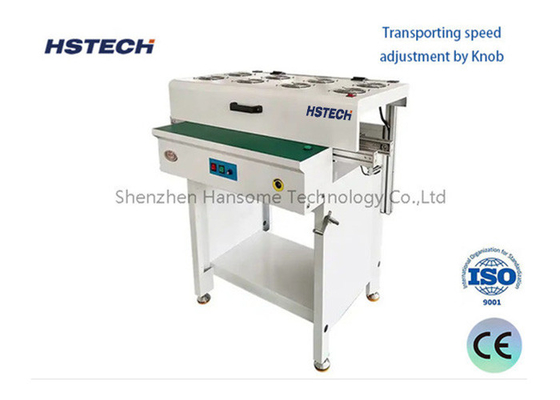

3, Transporting speed adjustment by Knob.

4, ESD green color work table.

5, Aluminum alloy transporting rail.

6, LED button control, speed adjustment motor.

7, Optional function available, tower light, inspection, dust cover, etc.

8, Customized requirement available.

9, Length available, 600mm, 1000mm, 1500mm, or optional.

10, SMEMA signal for inline connection.

Specification

1.Mainly used in SMT production line equipment and equipment link between the transfer, stop board function.
2. According to the need to increase the detection, function switching, NG, data memory and other functions.
3. High-strength equipment body to ensure the stability of the equipment.
4. Smooth stainless steel screws can adjust the width of the rail.
5. Use special aluminium slots to make the transfer track to prevent pcb jamming.
6. The control system is PLC controlled with standard SMEMA signal interface.

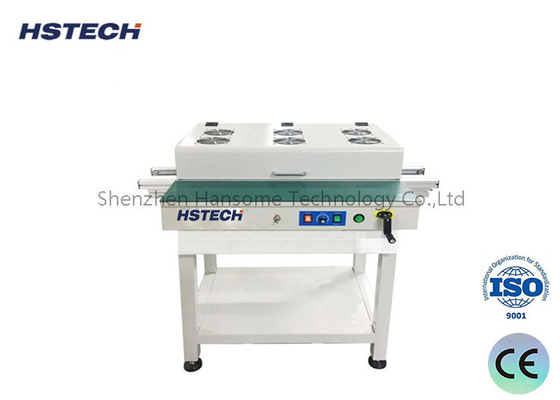

8. Worktable plate, lighting, static dust cover, cooling fan can be added as required.
9. Various forms can be customised according to the customer's site size planning or product production requirements, so as to facilitate the customer to choose the most reasonable structure.

Application:

Automatic conveying:
SMT conveyor belts can automatically transfer PCBs or other workpieces from one process to the next.
This greatly improves the automation of the production line and reduces the workload of manual operations.

Speed ​​control:
SMT conveyor belts can adjust the conveying speed according to production needs to ensure the reasonable flow of workpieces between various processes.
Reasonable conveying speed helps to ensure production efficiency and product quality.

Positioning calibration:
SMT conveyor belts are usually equipped with precise positioning systems that can accurately deliver workpieces to the specified insertion or marking positions.
This precise positioning ensures the smooth progress of subsequent processes.

Multi-process integration:
SMT conveyor belts can be seamlessly integrated with other SMT equipment such as placement machines, welding machines, marking machines, etc.
This integration enables the entire production line to work together efficiently.

Environmental control:
Some SMT conveyor belts also have environmental control functions such as temperature and humidity to ensure that the workpieces are in the best conditions for subsequent processes.
This environmental regulation helps to improve product quality and reliability.

Data collection:
SMT conveyor belts can collect information such as the transfer time and location of workpieces, providing data support for production process analysis.
These data help identify bottlenecks in the production line and optimize overall production efficiency.
