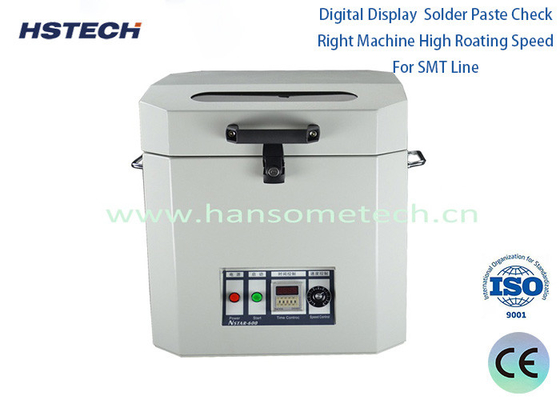

Solder Paste Mixer With High-Speed Rotation And Special Control Circuit For SMT Line

Brand Name:	HSTECH
Model Number:	NS-600
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Solder Paste Mixer

Power Supply:

AC110V/220V, 50/60Hz

Speed:

Adjustment

Air Supply:

Size:

410*410*490mm(W*D*H)

Weight:

45kg

Packaging Details:

Wooden package

Supply Ability:

500 sets per month

Highlight:

High Speed Rotation Solder Paste Mixer

Special Control Circuit Solder Paste Mixer

SMT Line Solder Paste Mixer

Product Description

Solder Paste Mixer with High-Speed Rotation and Special Control Circuit for SMT Line

Introduction

Located in the upper end of the tank body slurry constantly downward movement, the bottom of the pipe to the tank body above the slurry around the movement, the formation of a tornado funnel-type stirring effect, so that the slurry smooth mixing and softening, degassing to achieve the appropriate viscosity, after mixing the slurry has a good wettability, diffusion uniformity, excellent printing effect, to achieve the best reflow soldering performance.

Features

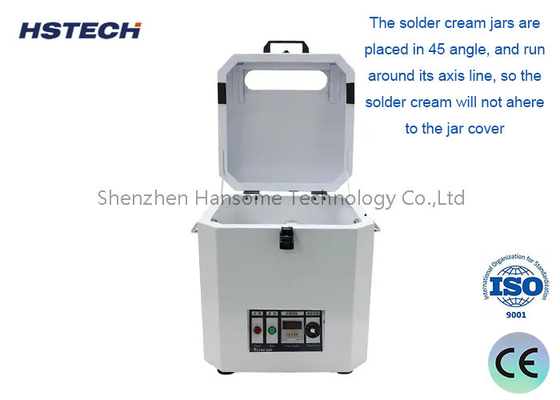

1. solder paste canisters are placed at a 45-degree angle and run around their axis so solder paste won't stick to the lid. 2. compatible with most brands of 500g solder paste stirrers.
2. Compatible with most brands of 500g solder paste stirrers, two cans can be stirred at once, saving time and increasing efficiency.
3. Double safety design ensures the safety of the operator.
4. 4. Eliminates air bubbles when stirring solder paste.
5. Adopting special control circuit, fully considering the control of solder paste stirring.
6. The rotating speed has been verified by practice, avoiding the influence on the tin force and the influence on the quality of the solder paste when the temperature rises.
7. It does not contain moisture and will not destroy the shape of tin.

Specification

Model:		NSTAR-600
Wattage:		60W
Power:		AC220V, 50Hz
Roating speed:		Primary rotating:1400RPM;Sencond rotating:400RPM
Working Capacity:		500g*2jar;
Tin Pot's Size:		M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us)
Time Setting:		0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time
Display & Caution:		LED digital display,light blink and buzzer warning
Machine Demension:		410410490mm(WDH)
Packing Demension:		420420500mm(WDH)
Net/Gross Weight:		40KG/45KG

Solder Paste Mixer With High-Speed Rotation And Special Control Circuit For SMT Line 0
