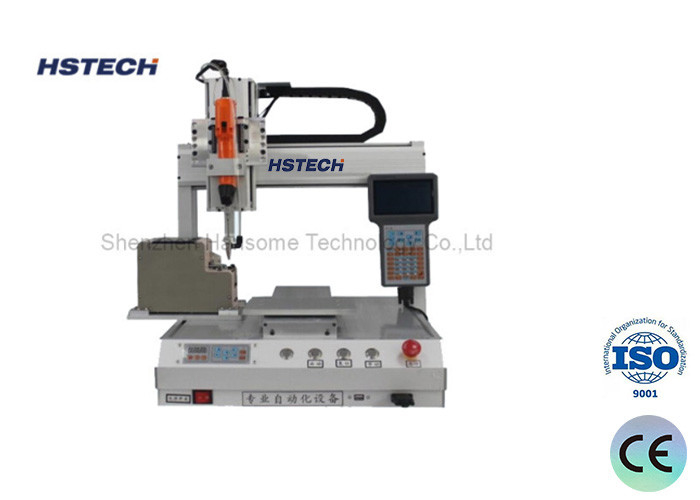

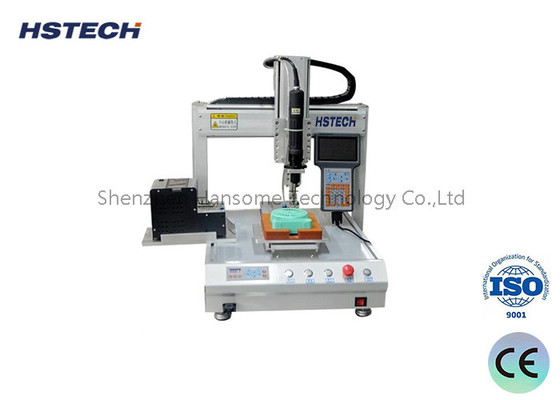

Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

M1-M6 Screw Fastening Machine

Photoelectric Switch Screw Fastening Machine

Automatic Screw Fastening Machine

Product Description

Screw Fastening Machine and Stability Omron Photoelectric Switch 500*500*100mm 50/60Hz

Introduction

This Screw Fastening Machine combines a feeder and a locking system in one, and its feeding part (i.e. screw arranger or feeder) not only optimises the screw arranging process, but also significantly improves the working efficiency. As a widely used automation machine in the electronics industry, it is particularly suitable for handling screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. High-efficiency suction screw feeding for enhanced efficiency.
2. Desktop visualisation operation, compatible with automatic line.
3. Move range optional: 500x500x100mm/600x600x100mm.
4.Support multi-screw suction.
5. Wide range of application.
6. Can be equipped with multi-axis, double platform and other devices.
7. Multiple editing, copying programme and other functions.
8. Offline download parameters, support manual control handle storage call.
9. Powerful storage capacity, support hundreds of files, each file up to 1000 screw bits.
