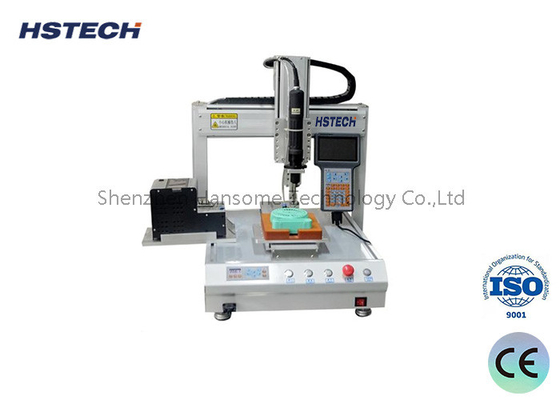

Suction Type Screw Fastening Machine Omron Photoelectric Switch 500500100mm 50/60Hz

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

500500100mm Screw Fastening Machine

Omron Photoelectric Switch Screw Fastening Machine

Suction Type Screw Fastening Machine

Product Description

High Speed Automatic Screw Fastening Robot | Omron Photoelectric Switch | 600*600*100mm | 50/60Hz

Introduction

Screw fastening machine consists of two main parts: the feeding system and the fasteninging system. The feeding section, also known as a screw alignment machine or screw feeder, employs a simplified screw alignment design with the core objective of improving work efficiency. As an automated machine, it is widely used in the electronics industry. Particularly noteworthy is the machine's ability to efficiently handle screws ranging in size from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

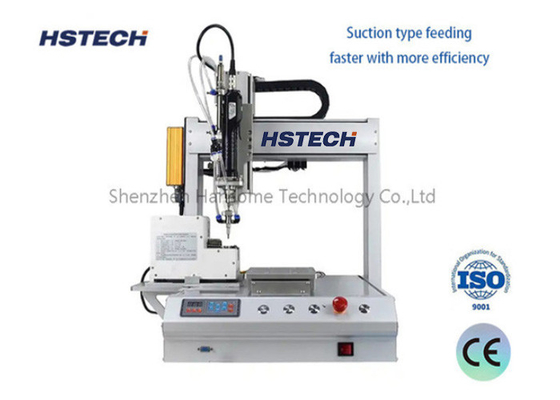

1. Suction feeder, efficient and quick.
2.Desktop visual operation, can be integrated in automatic production line.
3. Move range optional: 500x500x100mm or 600x600x100mm.
4.Support multi-screw bin suction mode.
5. Extended applications include dispensing, welding, testing, etc.
6. Compatible with multi-axis and dual-platform configurations.
7. Equipped with functions such as area array duplication and platform duplication.
8. Operating parameters can be downloaded to the controller, supporting offline execution and handheld box storage.
9. Store hundreds of processing files, each file supports 1000 screw bits.
