High Resolution Screw Fastening Machine With English Interface For Production Line

Brand Name:	HSTECH
Model Number:	HS-SL331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blowing Type Screw Locking Machine

Motor:

Step Motor

Axis:

3 Axis

Screws:

M1-M6

Platform:

Single

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

English Interface Screw Fastening Machine

High Resolution Screw Fastening Machine

Production Line Screw Fastening Machine

Product Description

High Resolution Screw Fastening Machine with English Interface for Production Line

Introduction

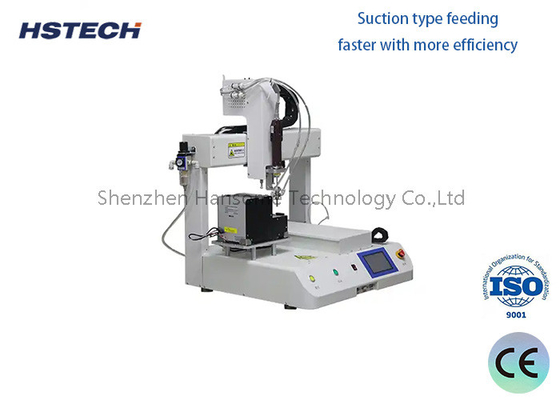

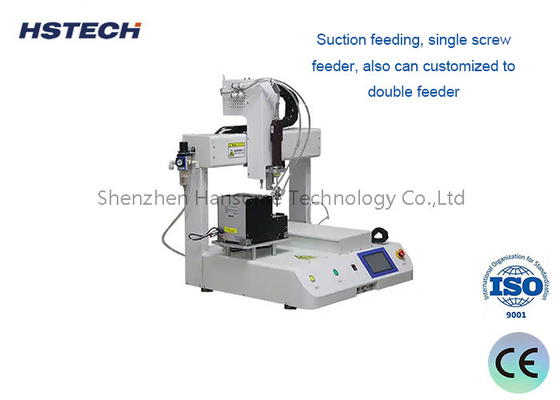

The screw locking/fastening machine adopts a Bolwing type feed and is equipped with a smooth screw feeder. The screw adsorbs the screw into the pipeline and automatically transports it to the electric batch for automatic operation. The machine is desktop and can be seen through the eyes throughout the entire process.

Specification

Model	HS-SL331	HS-SL441
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	300300100mm	400400100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	546585800mm	646685800mm
Machine weight	35kg	40kg

Features

1. Air supply type feeding, higher efficiency.
2. Desktop and visual operations can be connected to automated production lines.
3. The handheld box features a 320 * 240 high-resolution color screen and a fully English operating interface, making it easy to learn and use.
4. The standard for this machine is to use air blowing or suction feeding.
5. Supports multiple spiral chambers in suction mode.
6. Support extended applications such as locking screw dispensing, welding, testing, transportation, assembly, etc.
7. Multiple axes and dual platforms can be selected.
8. It has functions such as regional array replication, platform replication, batch editing, and single step operation.
9. After editing the operation parameters, they can be downloaded to the controller through the serial port for offline operation. Action parameters can also be saved in a handheld box for easy retrieval.

10,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.
