Automatic BGA Rework Station with ±0.01mm Mounting Accuracy CCD Color Optical Alignment System and 2600W Total Power for PCB Handling

Brand Name:	HSTECH
Model Number:	HS-700
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Mobile Phone BGA Rework Station

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Stepping Motor PCB Handling Equipment

BGA Rework Station PCB Handling Equipment

Product Description

Stepping Motor CCD Color Align System PCB Handling Equipment

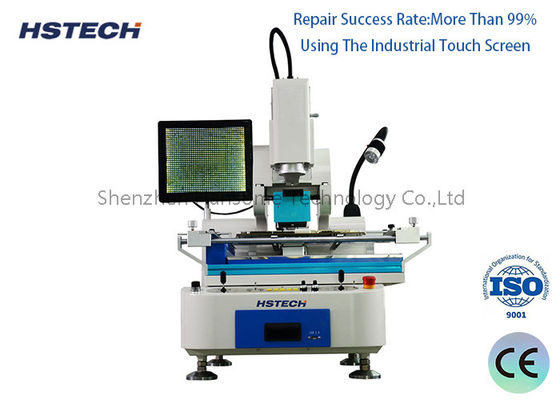

Professional BGA rework station with advanced CCD color optical alignment system for precision PCB handling and component repair.

Specifications

Model	HS-700
Power Supply	AC 100V / 220V±10% 50/60Hz
Total Power	2600W
Heater Power	Top heater 1200W(Max), bottom heater 1200W(Max)
Electric Material	Driving motor + smart temperature controller + color touch screen
Temperature Control	High precision K-sensor + closed loop control + independent temperature controller (±1℃ precision)
Sensor	1 piece
Locating Method	V shape PCB support + external universal fixture + laser light for centering and positioning
Overall Dimensions	L450mm × W470mm × H670mm
PCB Size	Max 140mm × 160mm, Min 5mm × 5mm
BGA Size	Max 50mm × 50mm, Min 1mm × 1mm
Applicable PCB Thickness	0.3 - 5mm
Mounting Accuracy	±0.01mm
Machine Weight	30KG
Mount Chip Weight	150g
Working Modes	Five: Semi-auto/Manual/Remove/Mount/Weld
Usage	Chips / phone motherboard etc.

Key Features

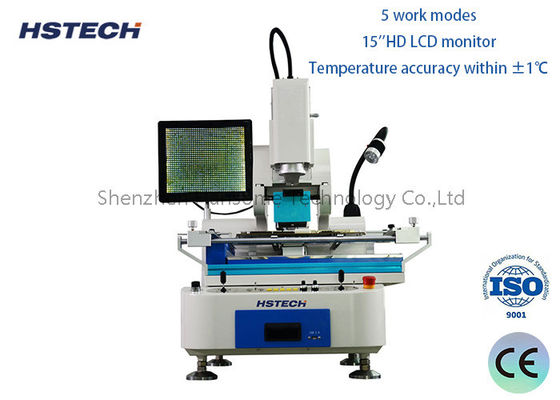

5 work modes for versatile operation
15" HD LCD monitor for clear visualization
7" HD color touch screen for intuitive control
Precision stepping motor for accurate positioning
CCD color optical alignment system
Temperature accuracy within ±1℃
Mounting precision within ±0.01mm
Repair success rate: 99%+
Independent research and development of single-chip control

Technical Advantages

Optical Alignment System

High-definition CCD (2 million) digital imaging with automatic optical zoom system and manual control with laser red dot alignment for precise component placement.

Imported Heating Core

Utilizes imported heating core technology for fast heating, high precision temperature control, and extended service life.

Real-time Temperature Monitoring

Features real-time temperature display with automatic curve analysis function for optimal process control.

Fast Heating and Cooling

IR preheating zone with medium wave ceramic infrared heating, multi-functional movable PCB fixing bracket, BGA bottom support bracket, and laminar flow integrated cooling fan.
