Automatic BGA Rework Station with ±0.01mm Mounting Accuracy and Touch Screen Control for High-Precision Motherboard Repair

Name: Automatic BGA Rework Station with ±0.01mm Mounting Accuracy and Touch Screen Control for High-Precision Motherboard Repair
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-700
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-700
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Mobile Phone BGA Rework Station

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Bga Rework Station Motherboard Repair Machine

Game Player Motherboard Repair Machine

Product Description

HS-700 Mobile Laptop Game Player Motherboard Repair Machine BGA Rework Station

Professional BGA rework station designed for repairing mobile phones, laptops, game players, and various motherboard components with precision temperature control and advanced positioning systems.

Technical Specifications

Model	HS-700
Power Supply	AC 100V / 220V±10% 50/60Hz
Total Power	2600W
Heater Power	Top heater 1200W (Max), bottom heater 1200W (Max)
Electrical Components	Driving motor + smart temperature controller + color touch screen
Temperature Control	High precision K-sensor + closed loop control + independent temperature controller (±1℃ precision)
Sensor	1 piece
Positioning Method	V shape PCB support + external universal fixture + laser light for centering and positioning
Overall Dimensions	L450mm × W470mm × H670mm
PCB Size Range	Max 140mm×160mm, Min 5mm×5mm
BGA Size Range	Max 50mm×50mm, Min 1mm×1mm
PCB Thickness	0.3 - 5mm
Mounting Accuracy	±0.01mm
Machine Weight	30KG
Maximum Chip Weight	150g
Working Modes	Five: Semi-auto/Manual/Remove/Mount/Weld
Applications	Chips / phone motherboard repair, etc.

Key Features

5 versatile work modes for different repair scenarios
15" HD LCD monitor for clear visual feedback
7" HD color touch screen for intuitive operation
Precision stepping motor for accurate positioning
CCD color optical alignment system
Temperature accuracy within ±1℃
Mounting precision within ±0.01mm
Repair success rate: 99%+
Independent research and development of single-chip control

Performance Advantages

Superior Safety Protection: Dual protection mechanism with automatic alarm system for heating device failures, preventing product damage from sensor malfunctions
High Intelligence: Fully automated functions prevent operator errors and ensure efficiency in lead-free manufacturing and component rework processes
Exceptional Sensitivity: Prevents PCB main board damage from heating head during equipment operation

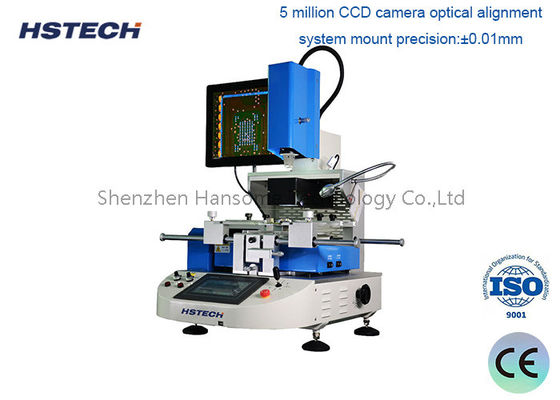

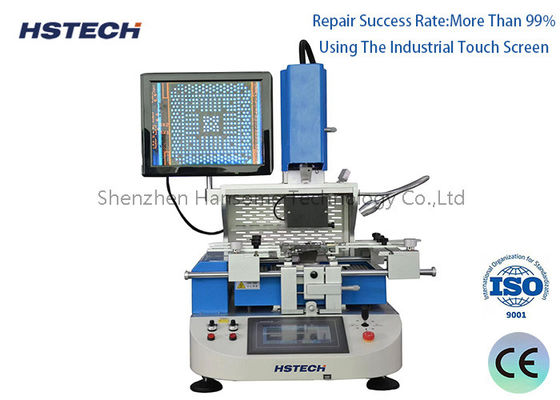

Product Images
