Desktop Screw Fastening Machine for Improved Production Efficiency OEM

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

Improved Production Efficiency Screw Fastening Machine

Desktop Screw Fastening Machine

OEM Screw Fastening Machine

Product Description

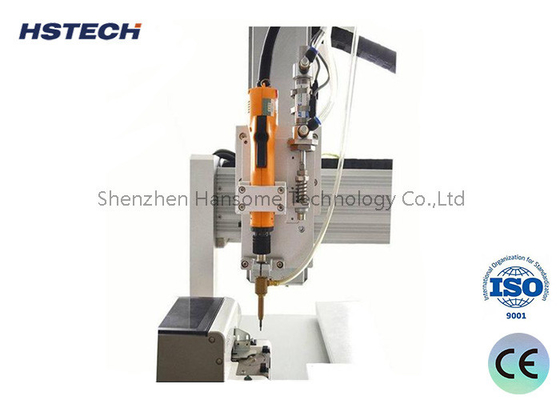

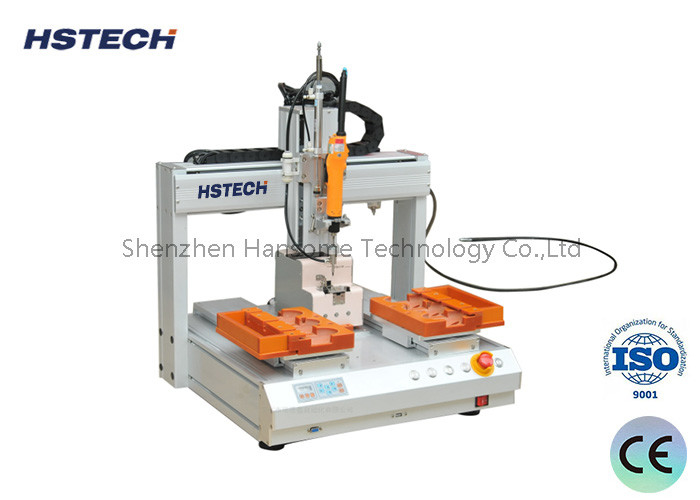

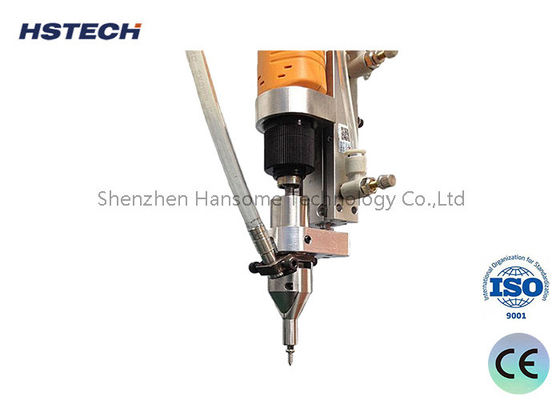

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

The screw fastening machine integrates a highly efficient feeding system with a precise locking system. One of its core components, the feeding part, also known as screw arranger or screw feeder, adopts an optimised screw arranging mechanism, which is designed to simplify the operation process and significantly improve work efficiency. As an advanced automation equipment, it has been widely used in the electronics manufacturing field and has become a powerful assistant in the production line.

The screw fastening machine is compatible with a wide range of standard screws from M1 to M6, demonstrating its wide applicability. Special requirements for screws can also be met with customised solutions, ensuring a smooth production process. Overall, this screw locking machine has injected new vigour into the automated production of the electronics industry with its high efficiency, precision and flexibility.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.High-speed suction feeding to enhance efficiency.
2.Desktop visual operation, compatible with automatic production line.
3.Move range optional 500x500x100 or 600x600x100mm.
4.Support multi-screw bin suction feeding.
5. Extended functions are abundant, covering dispensing, welding, testing and so on.
6. Support multi-axis and dual-platform operation.
7. Powerful programming function, support copying, editing and other operations.
8. Operating parameters can be downloaded offline, handheld box storage call convenient.
9. Large-capacity machine storage, support for multiple files and screw position management.
