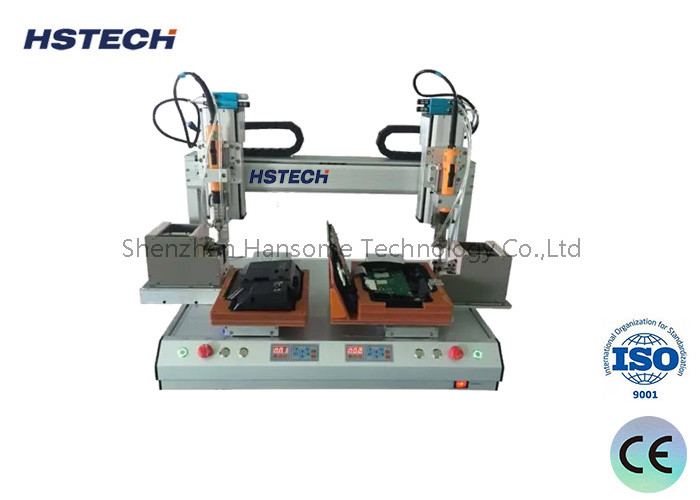

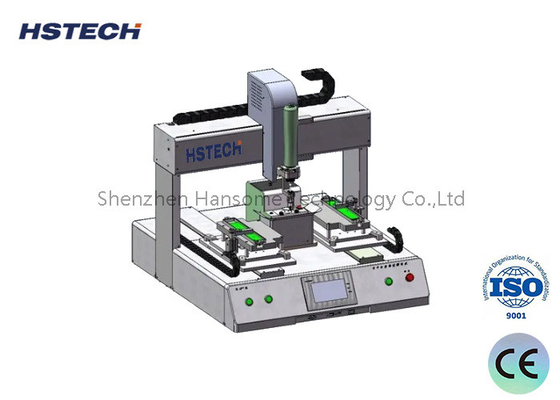

Double Station 4 Axis Screw Fastening Machine For Electronics Industry

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

4 Axis Screw Fastening Machine

Double Station Screw Fastening Machine

Electronics Industry Screw Fastening Machine

Product Description

High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder

Introduction

The screw fastening machine is a highly automated machine that integrates an advanced 4-axis travelling system, designed with a double table operating mode and equipped with a single efficient feeding device. The overall structure combines the two core parts of the feeding system and the fastening system in an exquisite way. The feeding system adopts a simple and efficient screw arrangement mechanism, which is designed to maximise working efficiency and precision.

Tailor-made for the electronics industry, this screw fastening machine is widely applicable to the locking of screws of standard sizes from M1 to M6, and also supports customised services for screws of special specifications, so as to meet the needs of use in different scenarios. Its high efficiency and precise locking ability makes the production efficiency increase significantly, is one of the indispensable automation equipment in the field of electronic manufacturing.

Features

1. Suction type single screw feeding, support customised double feeding configuration.
2.Z-axis adopts high quality electric screwdriver to ensure locking efficiency.
3.4-axis operation, large range of movement: 500x300x300x100mm.
4.Dual station design, alternate loading, improve efficiency and save manpower.
5.Precise adjustable torque to guarantee high standard of production.
6.Compatible with M1-M6 screws, achieved by replacing screw guides (support customisation).
7. Equipped with leakage detection, make up or alarm if not in place.
8. Rich storage, support hundreds of processing files, each file contains thousands of screw bits, adjustable with the use.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
