Introduce

The SMT conveyor is suitable for the connection between SMT and AI production lines. It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components. It can also be used for signal connection with other equipment. The connecting platform is divided into single track, double track, telescopic lift. Today we will introduce the working principle and product features of the docking station.

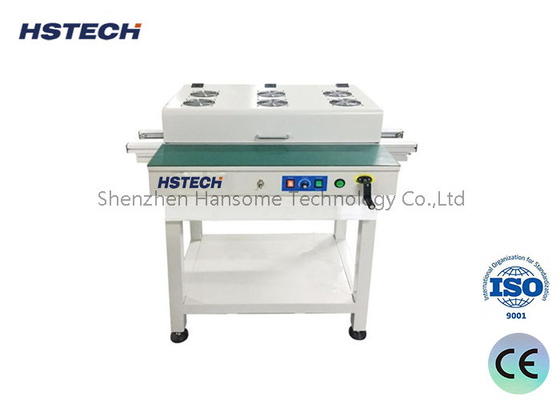

Features

1, Thickness stable stainless steel machine body.

2, Max 390mm PCB width, hand crand width adjustment.

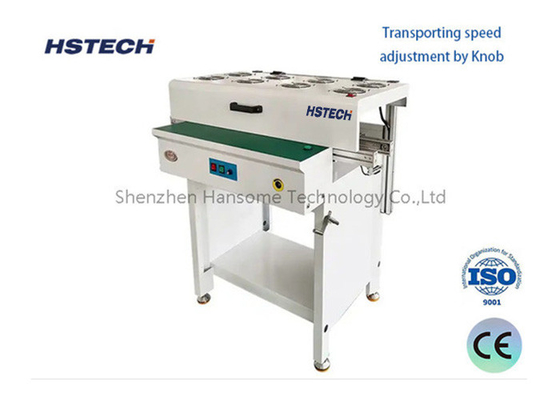

3, Transporting speed adjustment by Knob.

4, ESD green color work table.

5, Aluminum alloy transporting rail.

6, LED button control, speed adjustment motor.

7, Optional function available, tower light, inspection, dust cover, etc.

8, Customized requirement available.

9, Length available, 600mm, 1000mm, 1500mm, or optional.

10, SMEMA signal for inline connection.

Basic structure and working principle:
SMT Conveyor consists of conveyor belt, bracket, motor, sensor and other components.
The conveyor belt can continuously move the PCB through the motor drive.
The sensor is used to detect the position and status of the PCB to ensure the automation of the conveying process.
The bracket provides mechanical support and can be adjusted to accommodate PCBs of different sizes.

Common models and applications:
The width ranges from 300mm to 600mm to accommodate PCBs of different specifications.
The conveying speed is generally 0.1-1.0m/min and can be adjusted according to demand.
It is widely used in SMT production line equipment such as placement machines, reflow ovens, and testing equipment.
It can also be used in other electronic assembly and testing processes that require automatic PCB conveying.

Selection and integration considerations:
Choose the appropriate conveying width and length according to the PCB size and production line layout.
Ensure interface compatibility with upstream and downstream equipment to achieve seamless docking.
Consider the working environment factors and choose applicable designs such as dustproof and anti-static.
Choose a reliable control system to ensure the stability and repeatability of the conveying process.

Specification

1.Mainly used in SMT production line equipment and equipment link between the transfer, stop board function.
2. According to the need to increase the detection, function switching, NG, data memory and other functions.
3. High-strength equipment body to ensure the stability of the equipment.
4. Smooth stainless steel screws can adjust the width of the rail.
5. Use special aluminium slots to make the transfer track to prevent pcb jamming.
6. The control system is PLC controlled with standard SMEMA signal interface.
8. Worktable plate, lighting, static dust cover, cooling fan can be added as required.
9. Various forms can be customised according to the customer's site size planning or product production requirements, so as to facilitate the customer to choose the most reasonable structure.
