Desktop Operation Screw Fastening Machine for Automatic Production Line

Desktop Operation Screw Fastening Machine for Automatic Production Line

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Suction Type Screw Locking Machine

Feeding:

Suction Feeding

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Desktop Operation Suction Feeding 3Axis Screw Fastening / Locking Machine

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Suction feeding for faster, more efficient operation.
2.Desktop visibility, integrable with auto production lines.
3.Movement range options: 500x500x100mm or 600x600x100mm.
4.Multi-screw bin support in suction mode.
5.Extended app compatibility: screwing, welding, testing, handling, assembly.
6.Multi-axis & double platform options available.
7.Advanced features: regional/platform replication, batch editing, single-step operation.
8.Offline operation via serial port download, action parameters saved in handheld box for easy recall.
9.High-capacity file storage, each file holds 1000 screw settings for instant access.

About Product

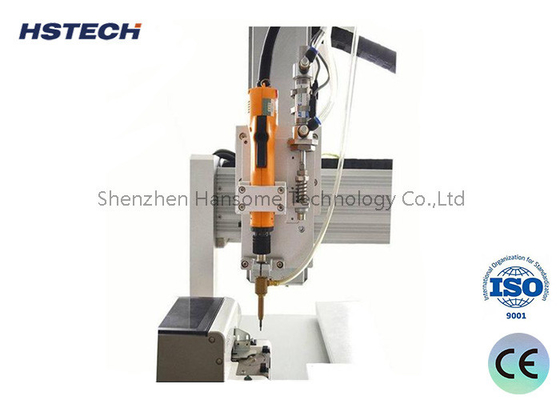

Desktop Operation Screw Fastening Machine for Automatic Production Line 0

About Detail

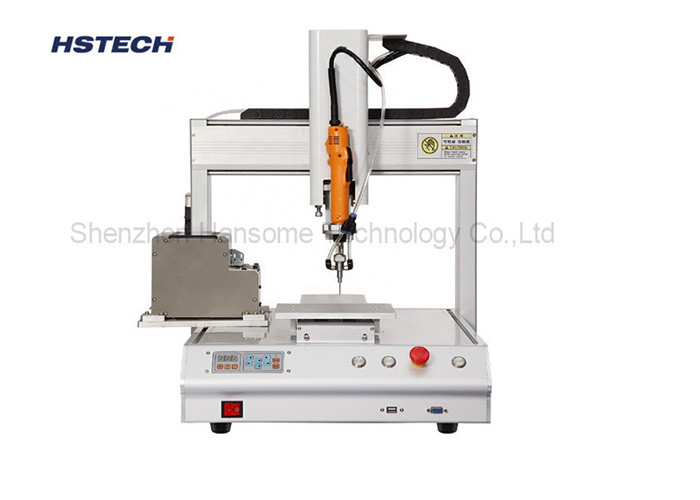

Desktop Operation Screw Fastening Machine for Automatic Production Line 1
