Automatic Screw Fastening Machine with Air Blowing Type Feeding for Desktop Operation

Automatic Screw Fastening Machine with Air Blowing Type Feeding for Desktop Operation

Brand Name:	HSTECH
Model Number:	HS-SL331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blowing Type Screw Locking Machine

Motor:

Step Motor

Axis:

3 Axis

Screws:

M1-M6

Platform:

Single

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

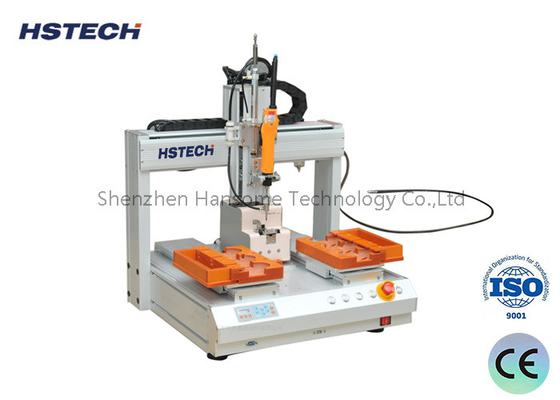

Precision Screw Fastening Machine with Air Blowing Type Feeding for Automatic Production Line

Introduction

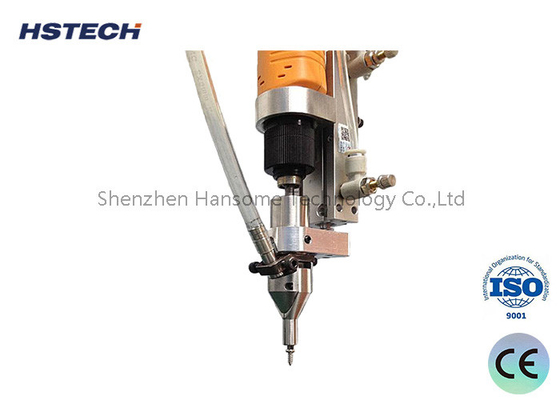

This screw locking/fastening machine using bolwing type feeding, equipped with a smooth screw feeder, the screws absord the screws into the pipe, and to the electric batch automatically, to achieve the automatic operation, the machine is desktop, which can see the whole process by eyes.

Specification

Model	HS-SL331	HS-SL441
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	300300100mm	400400100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	546585800mm	646685800mm
Machine weight	35kg	40kg

Features

1.Air-blowing feeding for enhanced efficiency.
2.Desktop visibility, compatible with automatic production lines.
3.320*240 color screen with English UI for seamless operation.
4.Versatile: standard blowing or suction feeding.
5.Suction mode supports multiple screw bins.
6.Extends to screw dispensing, welding, testing, handling, & assembly.
7.Options for multi-axis & double platforms.
8.Features include regional replication, platform duplication, batch editing, & single-step operation.
9.Offline operation with serial port download & handheld box storage for easy recall.
Stores hundreds of files, each supporting 1000 screw bits, for instant access.
