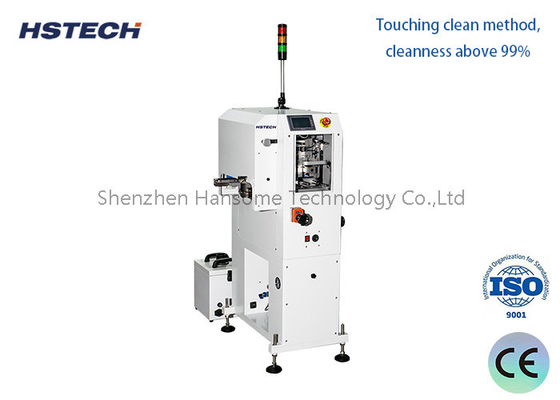

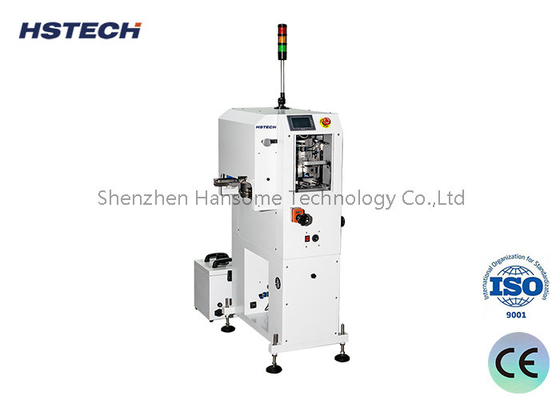

High Precision ESD Brush PCB Surface Dust Cleaner PCB Handling Equipment With Static Eliminate Function

High Precision ESD Brush PCB Surface Dust Cleaner PCB Handling Equipment With Static Eliminate Function

This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.

The fully automatic PCB board surface cleaning machine is suitable for online cleaning of small board chips, dust, fibers, hair, skin debris, metal particles and other foreign matter on the surface of PCB pads before solder paste printing or adhesive coating to ensure that the PCB surface is in a Clean status.

Principle and working mode:

Principle of electrostatic dust removal: Use electrostatic adsorption force to adsorb and collect dust particles on the surface of PCB. Common electrostatic dust removal methods include ion blowers and electrostatic dust collectors.

Principle of air flow sweeping: Use compressed air to generate high-speed airflow to sweep and absorb dust on the surface of PCB. This method does not require an electrostatic field, but requires a matching vacuum collection system.

Main equipment components:
Dust removal room/isolation workbench: closed working environment to reduce external dust pollution
Dust removal device: electrostatic generator or compressed air system
Dust collection device: electrostatic collection plate or vacuum cleaner
Conveying device: conveyor belt for automatic entry and exit of PCB

Main performance indicators:
Cleaning efficiency: can remove more than 99% of PCB surface dust
Cleanliness: PCB surface particle size is less than 5μm
Cleaning speed: one-time cleaning time is less than 10 seconds
Cleanliness level: meet the ISO14644-1 Class 100 clean room standard

Application scenarios and advantages:
PCB manufacturing link: improve the yield rate of each PCB process
PCB assembly link: ensure the cleanliness of PCB during mounting and welding
Repair and rework: local cleaning of assembled PCBs
Non-destructive cleaning: will not cause any scratches or damage to the PCB surface

Purchase suggestions:
Choose the appropriate equipment model according to PCB size and production scale
Pay attention to the equipment's cleaning efficiency, cleaning degree and cleaning speed indicators
Evaluate the equipment's automation level and ease of operation
Consider the equipment's energy consumption, noise, floor space and other usage costs

Specification

Features

1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.

COMPANY PROFILE

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
