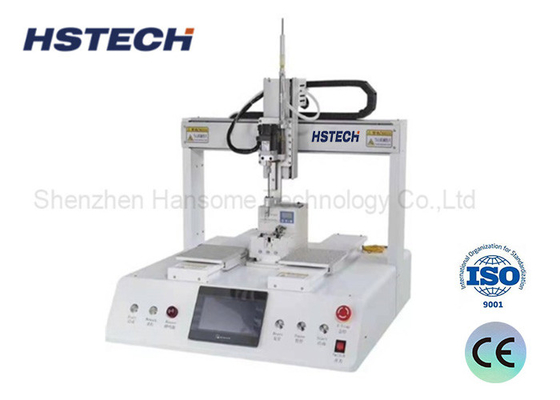

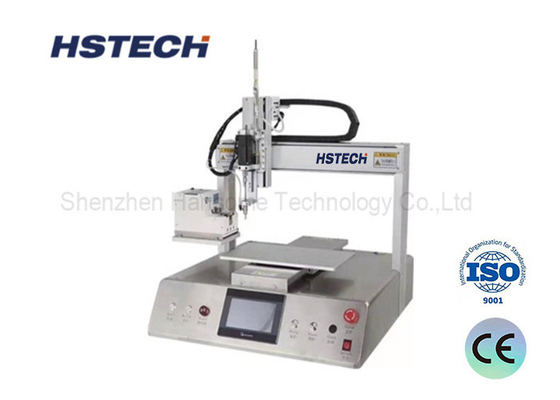

Desktop and Visible Operation Screw Fastening Machine with Single Locking Head

Desktop and Visible Operation Screw Fastening Machine with Single Locking Head

Brand Name:	HSTECH
Model Number:	HS-TS5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Blowing / Suction Feeding

Axis:

5 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

Single Locking Head Screw Fastening Machine

Visible Operation Screw Fastening Machine

Desktop Screw Fastening Machine

Product Description

Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine

Introduction

This touch screen control screw locking machine, is a very easy programming machine, which use hand moving the screw driver to location

the screw locking holes. The whole teaching time max take 10 mins. Its a simple programming screw machine, moreover this machine use thicker material, aluminum structure, and famous brand electric parts.

Specification

Model	HS-TS5331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Single-screw suction feeder with locking head.
2.Desktop operation, compatible with auto production lines.
3.6-axis movement within 600300300100100mm range.
4.Supports multiple screw bins in suction mode.
5.Dual workstation design enhances efficiency, reduces labor costs.
6.Quickly adapts to M1-M6 screws with interchangeable guides (customizable).
7.User-friendly, allowing multi-machine operation.
8.Stores hundreds of files, each with 1000 screw settings, for instant recall.

About Product

Desktop and Visible Operation Screw Fastening Machine with Single Locking Head 0

About Details

Desktop and Visible Operation Screw Fastening Machine with Single Locking Head 3

About Packaging

Desktop and Visible Operation Screw Fastening Machine with Single Locking Head 5
