Screw Fastening Machine 6 Axis Screw Lock Machine with Double Working Station and Feeder

Screw Fastening Machine 6 Axis Screw Lock Machine with Double Working Station and Feeder

Brand Name:	HSTECH
Model Number:	HS-SL7331S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

6 Axis Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screw Feeder:

Double

Screw Driver:

Double

Moving Range:

300*300*100mm/300*300*100mm

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

6 Axis Screw Lock Machine

Screw Fastening Machine with Feeder

Double Working Station Screw Fastening Machine

Product Description

Double Screw Feeder 6 Axis Suction Type Auto Screw Fastening / Locking Machine

Introduction

The screw machine is a 6 axis screw lock machine, it just like two 3axis screw lock machine made in one machine, so this unit machine has double working station, double screw driver and double screw feeder, it's a most efficiency machine which can locking two pcs of products at the same time.

Specification

Model	HS-SL7331S
Production name	6Axis Automatic Screw Locking Machine
Moving range(X1/Y1/Z1)	300300100mm
Moving range(X2/Y2/Z2)	300300100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	1092585800mm
Machine weight	85kg

Features

1.Innovative Suction Feeding System: Equipped with a suction-based feeding mechanism, dual screwdrivers, and a dual screw feeder, ensuring smooth and efficient material handling.
2.6-Axis Versatility: Capable of 6-axis operation with a generous working range of 300x300x100mm, effectively combining the capabilities of two 3-axis machines into one compact unit.
3.Seamless Automation Integration: Designed to interface seamlessly with automatic production lines, enabling fully automated production processes.
4.Versatile File Compatibility: Supports importing PC diagram images, PLT, and G-code files, enhancing compatibility and flexibility.
5.Comprehensive Instruction Set: Boasts a rich assortment of motion and auxiliary instructions, allowing for precise control and customization.
6.Intuitive Teaching Pendant & Programming: Features a user-friendly teaching pendant and programming system, alongside advanced features like image copy, batch revisions, and other editing functions.
7.Real-Time Tracking Display: Provides dynamic, real-time display of machining tracks, enhancing visibility and process monitoring.
8.Instant Help System: Equipped with a quick and intuitive help system, accessible by pressing Shift+F1 on any interface, making troubleshooting and support effortless.
9.Flexible Processing Modes: Supports multiple processing methods including cycle machining, single machining, automatic machining, and single-step machining, catering to diverse production needs.

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

About Product

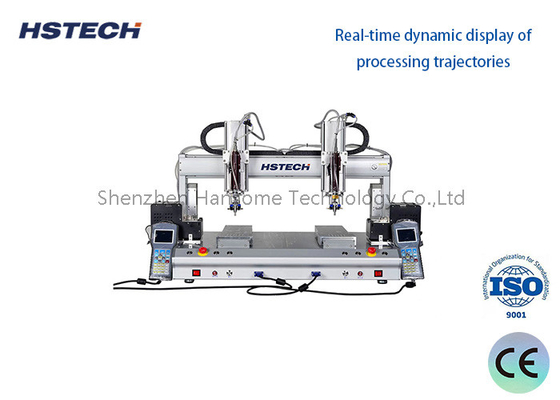

Screw Fastening Machine 6 Axis Screw Lock Machine with Double Working Station and Feeder 0

About Detail

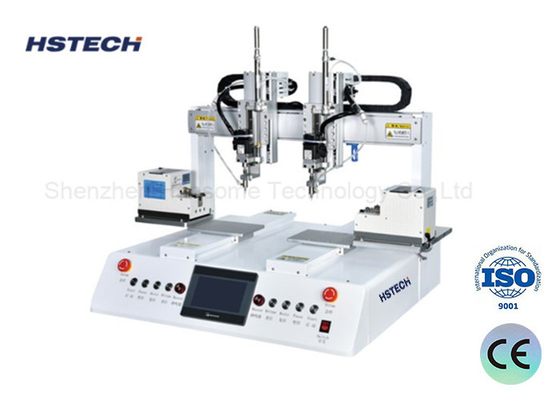

Screw Fastening Machine 6 Axis Screw Lock Machine with Double Working Station and Feeder 1
