Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Suction feeding enhances speed & efficiency.
2.Desktop-friendly, compatible with auto production lines.
3.Movement ranges: 500x500x100mm or 600x600x100mm.
4.Multi-screw bin suction support.
5.Versatile for locking, dispensing, welding, testing, handling, & assembly.
6.Multiple axis & dual platform options.
7.Regional & platform replication, batch editing, one-step operation.
8.Offline operation with downloaded/saved parameters.
9.Stores hundreds of files, each with 1000 screw bits, for on-demand access.

About Product

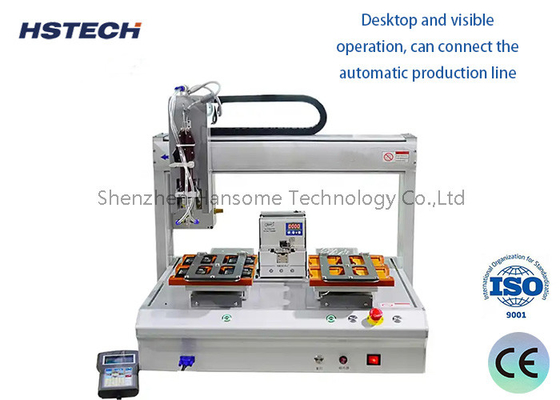

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line 0

About Detail

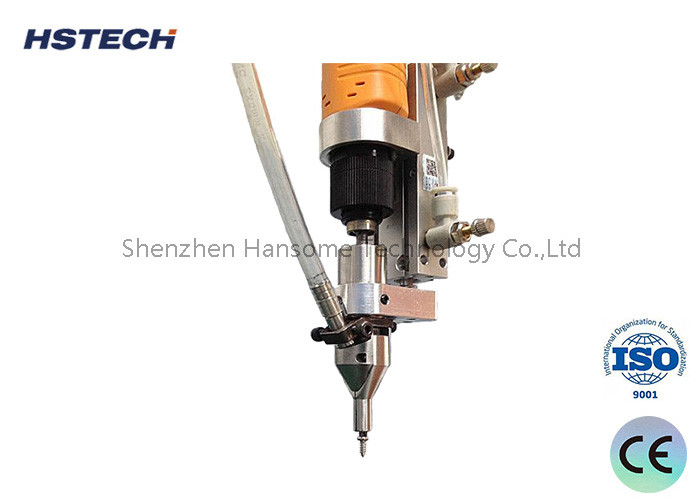

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line 1

About Packaging

About Transport

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line 5
