Customisable Screw Fastening Machine for Smooth Production Process

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

The screw fastening machine integrates an efficient feeding and precise locking system, featuring an optimized screw arranger that simplifies operations and boosts efficiency. Widely adopted in electronics manufacturing, it streamlines production lines. Compatible with M1 to M6 screws and customizable for special needs, this advanced automation tool energizes electronics production with its efficiency, precision, and flexibility.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.High-speed suction feeding boosts efficiency.
2.Desktop visual operation integrates seamlessly with auto production lines.
3.Move range customizable: 500x500x100 or 600x600x100mm.
4.Multi-screw bin suction feeding supported.
5.Extended capabilities include dispensing, welding, testing, etc.
6.Multi-axis & dual-platform operation available.
7.Powerful programming with copy, edit functions.
8.Offline operating parameter downloads & handheld box storage for convenience.
9.Large storage capacity for multiple files & screw position management.

About Product

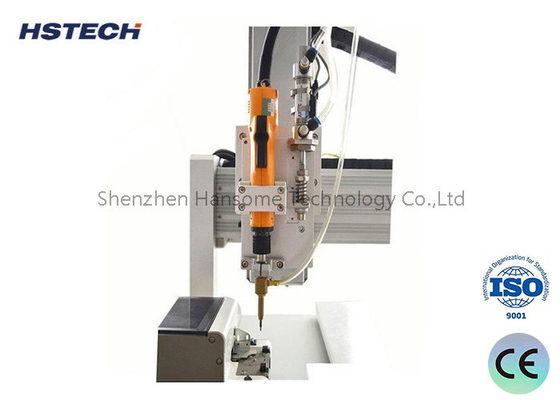

Customisable Screw Fastening Machine for Smooth Production Process 0

About Details

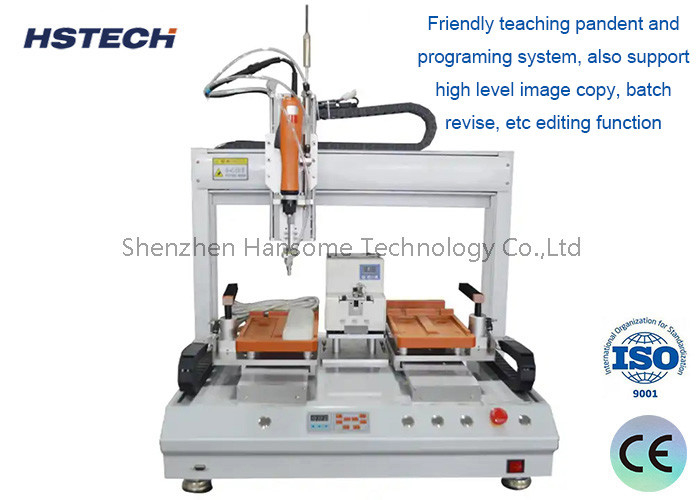

Customisable Screw Fastening Machine for Smooth Production Process 1
