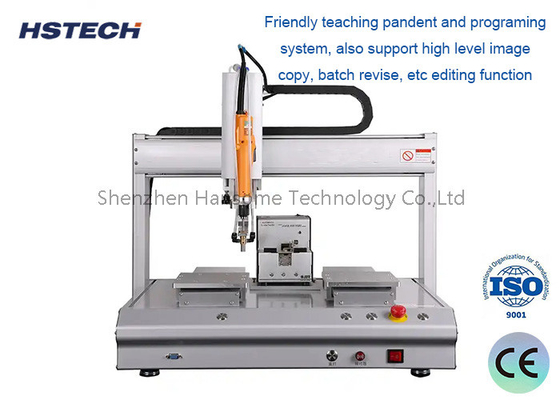

Dual Screw Driver Dual Platform and Suction Screw Feeder Automatic Screw Locking Machine

Dual Screw Driver Dual Platform and Suction Screw Feeder Automatic Screw Locking Machine

Brand Name:	HSTECH
Model Number:	HS-DH6331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Locking Machine

Introduction

Introducing the advanced dual-screwdriver, dual-platform automatic screw locking machine with suction feeder. This innovative machine simplifies programming through its touchscreen interface and manual screw head positioning, drastically reducing setup time. It revolutionizes the electronics industry by replacing conventional manual and pendant-programmed machines.

Designed for versatility, this machine effortlessly accommodates screws ranging from M1 to M6, with customization options for specialized screws. Its user-friendly features and broad compatibility make it an ideal choice for boosting productivity and efficiency in electronics manufacturing.

Specification

Model	HS-DH6331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	600300300100100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

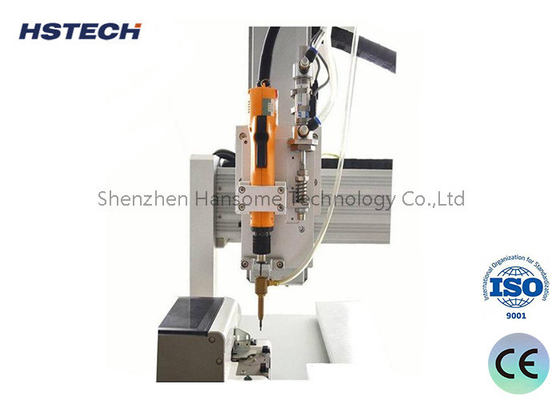

1.Features a single suction feeder and locking head for efficient screw supply.
2.Compact desktop design, seamlessly integrates with automated production lines.
3.Offers 6-axis operation with a generous 600x300x300x100x100mm working range.
4.Supports multiple screw bins in suction mode, enhancing flexibility.
5.Dual workstation configuration doubles productivity while minimizing labor expenses.
6.Quickly adapts to M1-M6 screws with interchangeable screw guiders, customizable for special needs.
7.User-friendly operation, enabling simultaneous control of multiple machines for streamlined workflow.
8.Robust memory system, storing hundreds of files, each capable of storing 1000 screw bit profiles for quick access and recall.
