Introduction

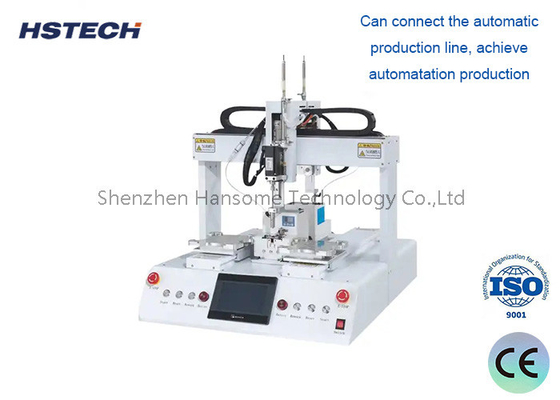

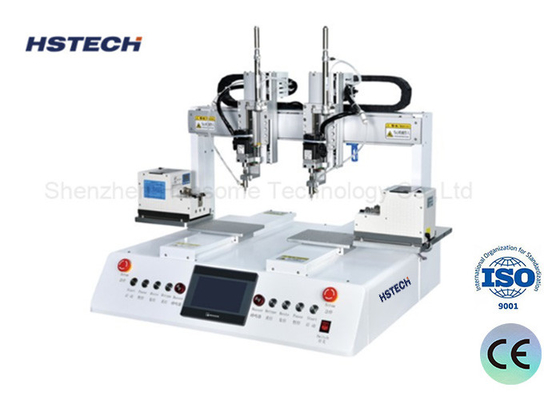

The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time.

Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry.

Compatible for screws from M1 to M6, other special screws, also can be customization.

Mechanical structure:

• Using industrial robots or special mechanical arms
• With 4-6 degrees of freedom, it can be operated flexibly
• Strong structure and high positioning accuracy
• Adopting modular design, it is easy to maintain and upgrade

Intelligent control system:

• Equipped with industrial-grade PLC controller and special program
• Equipped with human-computer interactive touch screen, easy to operate
• With intelligent identification of screw position, automatic parameter adjustment and other functions

Screw tightening system:

• Integrated high-torque electric screwdriver head
• Supports multiple tightening modes such as constant torque and constant force
• Can accurately control tightening angle, speed, torque and other parameters

Visual guidance system:

• Using high-resolution industrial cameras for positioning
• Combined with machine vision algorithms to achieve automatic navigation
• Can detect the tightening status of screws and feedback adjustment

Application scenarios:

• Applicable to industrial products that require high-precision screw assembly
• Such as electronic equipment, home appliances, automotive parts, etc.
• Widely used in electronics, home appliances, automobiles and other manufacturing industries

Specification

Main parts brand

1. Motor: Shinano
2. Guide: Hiwin
3. Photoelectric switch: Omron
4. Power supply: Meanwell

Features

• Suction type feeding, with single screw feeder and single locking head.
• Desktop and visible operation, can connect the automatic production line.
• 6 Axis operation, moving range 600*300*300*100*100mm.
• Support multiple screw bins in suction mode.
• Double working station, improve the production efficiency and reduce labor cost.
• Easy adaptability for M1-M6, just by changing screw guider(Customization available).
• Easy operation, operator can operate several machines at the same time.
• The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.
