High Speed Automatic Screw Fastening Machine Omron Photoelectric Switch

High Speed Automatic Screw Fastening Machine Omron Photoelectric Switch

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Speed Automatic Screw Fastening Machine Omron Photoelectric Switch

Introduction

The screw machine integrates a feeding system and a lock-locking mechanism, with the feeding component, also known as a screw-arrangement device or feeder, featuring a streamlined arrangement of screws in a row to enhance operational efficiency. This automated equipment is prevalent in the electronics industry, demonstrating compatibility with screws ranging from M1 to M6 in size.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Rapid suction feeding for enhanced operational speed and efficiency.
2.Desktop-friendly with seamless integration into automated production lines.
3.movement ranges: 500x500x100mm or 600x600x100mm.
4.Multi-screw bin compatibility in suction mode for versatility.
5.Versatile for screw-related tasks: locking, dispensing, welding, testing, handling, & assembly.
6.Available in multi-axis & dual-platform configurations for flexibility.
7.Features include regional & platform replication, batch editing, & one-step operation for ease.
8.Offline operation enabled via serial port download or handheld box storage for quick recall.
9.Stores numerous processing files, each capable of managing 1000 screw bits, for immediate use.

About Product

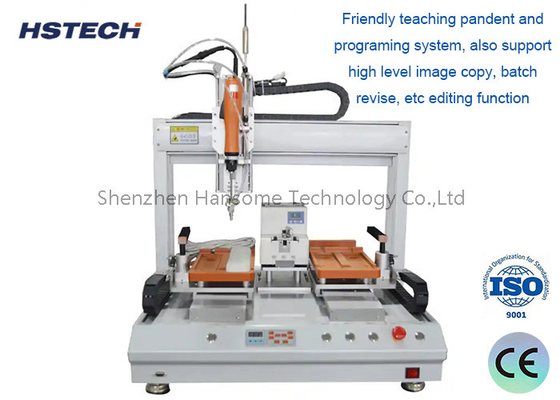

High Speed Automatic Screw Fastening Machine Omron Photoelectric Switch 0

About Detail

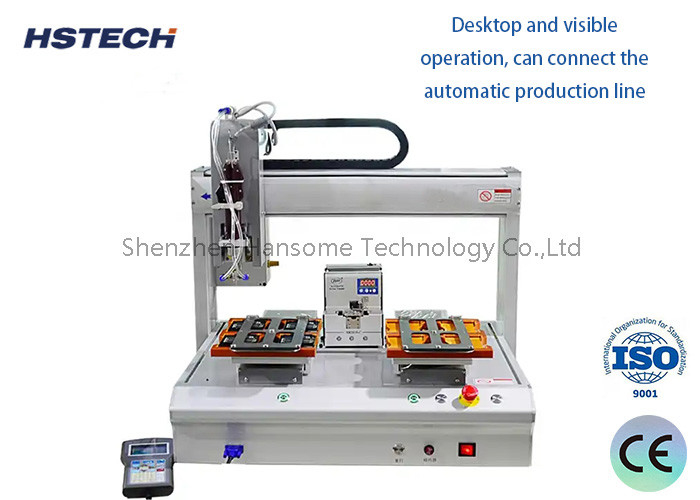

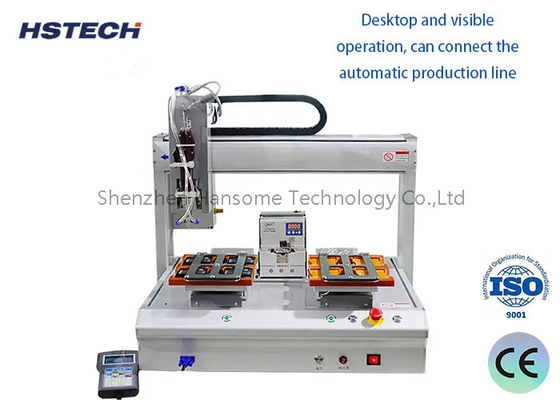

High Speed Automatic Screw Fastening Machine Omron Photoelectric Switch 1

About Packaging
