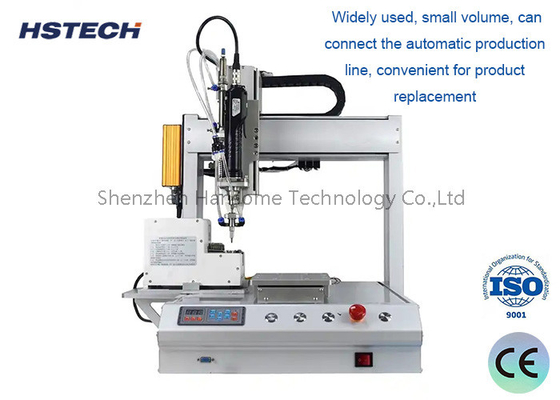

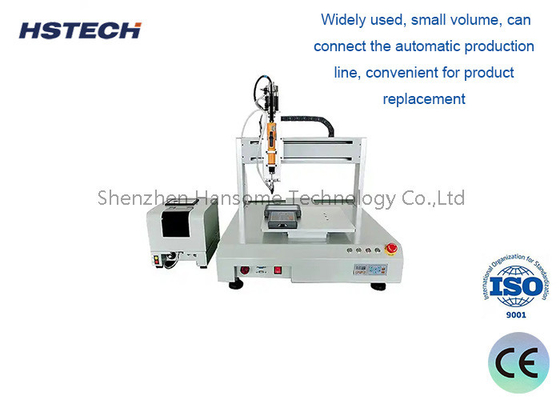

CAD CorelDraw Screw Fastening Machine Desktop Screw Tightening Robot Repeat Accuracy of plusmn 0.02mm

CAD CorelDraw Screw Fastening Machine Desktop Screw Tightening Robot Repeat Accuracy of plusmn 0.02mm

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

CAD CorelDraw Screw Fastening Machine Desktop Screw Tightening Robot Repeat Accuracy of plusmn 0.02mm

Introduction:

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Main parts brand:

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features:

1, Suction type feeding, faster with more efficiency.
2, Desktop and visible operation, can connect the automatic production line.
3, Moving range has two options, 500*500*100mm or 600*600*100mm.
4, Support multiple screw bins in suction mode.
5, Support extended applications, such as locking screw dispensing, welding, testing, handling, assembly, etc.
6, Available for multiple axis and double platform options.
7, With regional array replication, platform replication, batch editing, single-step operation and other functions.
8, After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.

9,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Mechanical structure:
The desktop design takes up little space and is suitable for installation on the workbench or production line
The robot arm adopts a 4-degree-of-freedom design to achieve precise screw tightening
The lightweight mechanical structure is flexible and responsive

Intelligent control system:
Built-in industrial-grade PLC controller, supports multiple programming languages
Equipped with a human-computer interactive touch screen, the operation interface is simple and intuitive
It has intelligent functions such as screw position recognition and automatic optimization of screw tightening parameters

Screw tightening system:
Integrated with high-precision torque sensor and electric screwdriver head
Supports multiple screw tightening modes such as constant force and constant speed
Programmable tightening parameters such as torque and speed to ensure stable tightening quality

Visual system:
Equipped with a high-definition CCD camera to automatically identify the screw hole position
Combined with machine vision algorithms, it automatically corrects the screw tightening path
Can detect the screw tightening status and provide real-time feedback and adjustment

Application scenarios:
Suitable for the assembly and production of small and medium-sized electronic products
Can be applied to screw tightening operations of various electronic products and mechanical devices
Especially suitable for scenarios with high requirements for assembly quality and production efficiency

Specification:

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

CAD CorelDraw Screw Fastening Machine Desktop Screw Tightening Robot Repeat Accuracy of plusmn 0.02mm 0
