Smooth and Precise 90 Degree PCB Turn Conveyor PCB Handling Equipment for SMT Production Line

Smooth and Precise 90 Degree PCB Turn Conveyor PCB Handling Equipment for SMT Production Line

Application:

This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)

Features:

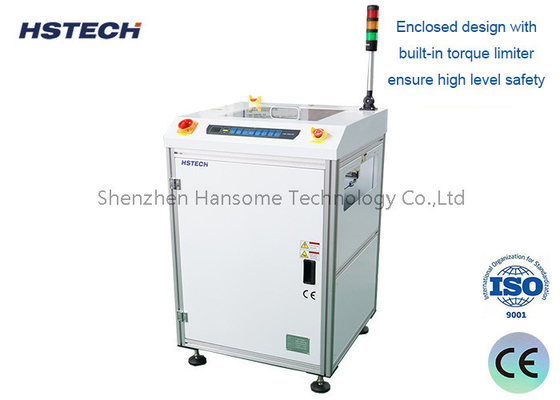

1, Enclosed design with built-in torque limiter ensure high level of safety.

2, Top safe cover can be opened for each access to hardware during Maintenance.

3, Use friendly control button.

4, Smooth and precise rotation.

5, Minimize the transfer gap between conveyors.

6, PCB traffic flows can be customized.

7, Smooth and parallel width adjustment(lead screw).

8,SMEMA compatible.

Othere features:

90-degree steering function: The equipment can make a 90-degree vertical steering of the PCB board during the conveying process to achieve corner transmission.

Continuous automation: The entire PCB board conveying process is driven by the transmission device, and continuous steering and conveying can be achieved without human intervention.

High-precision positioning: The sensor and control system are used to accurately locate the position of the PCB board to ensure that the steering process is stable and reliable.

Wide range of applications: It can be applied to PCB boards of various sizes, and can handle up to 600mm x 500mm boards.

Flexible integration: It can be used alone or integrated with other automation equipment such as placement machines, reflow ovens, etc. to build a complete production line.

Energy saving and environmental protection: It adopts advanced motor drive system, which is reliable and low in noise, and meets environmental protection requirements.

Easy operation and maintenance: The design is simple and compact, and daily maintenance is convenient to ensure long-term stable operation of the equipment.
