High Precision Screw Fastening Machine with Desktop Operation and CAD Document Support

High Precision Screw Fastening Machine with Desktop Operation and CAD Document Support

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Screw Lock Machine

Material:

Titanium And Titanium Alloy

OEM:

Axis:

4 Axis

Suitable Screws:

M1-M5

Drive System:

Step Motor And Timing Belt

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

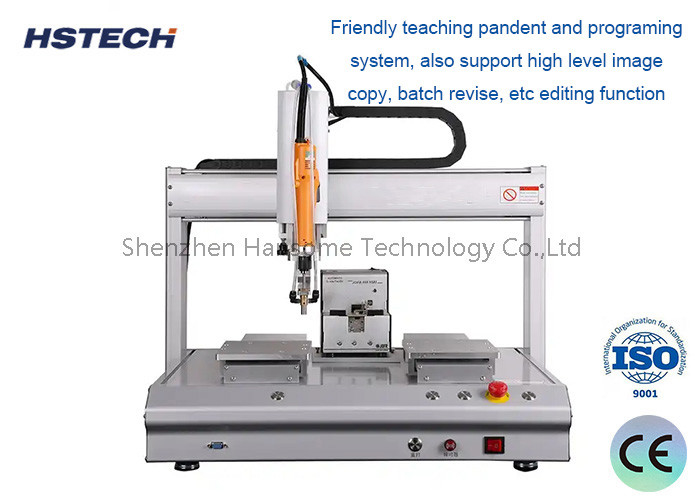

Desktop Screw Fastening Machine with Stepper Motor and Timing Belt Driven System

Introduction

This screw locking machine streamlines the entire process of automatic screw conveying, tightening, and subsequent testing, leveraging a sophisticated integration of electric and pneumatic components. Its primary objective is to minimize manual intervention, thereby drastically reducing the reliance on human labor and mitigating the risks associated with manual errors or misoperations. As a tailored automation solution, this equipment embodies the essence of customization, designed specifically to meet the unique requirements of its application.

Features

1.Featuring a simplified desktop interface, this screw locking machine seamlessly integrates with production lines, facilitating swift and effortless product switches.
2.Boosting efficiency, an optional double Y-axis configuration enables alternating product handling, maximizing throughput.
3.Optimized for precision, it is the perfect choice for locking screws spanning sizes from M1 to M5, ensuring reliable fastening.
4.Enhancing user experience, it supports CAD document inputs, simplifying setup and programming for added convenience.
5.Demonstrating versatility, this machine accommodates screws with lengths varying up to ±5 mm, ensuring compatibility with a wide range of fasteners.

Specfication

Model	HS-SL5331
Voltage	AC110V/220V,50/60Hz,Meanwell brand
X/Y1/Y2/Z working range	500/300/300/100mm
XYZ speed	Max XY:600mm/s,Z:300mm/s
Y platform	190*150mm
Repeat accuracy	0.02mm
Motor	Stepper motor(Shinano Kenshi brand)
Driven system	Timing blet for X/Y, Z axis screw
Document support	CAD,CorelDRAW
Loading capacity	X/Y:10kg,Z:5kg
Linear Guide	HIWIN(Taiwan brand)
Photoelectric switch	(Germany brand)
Cylinder	AirTAC
Suitable screws	M1 - M5
Machine size	720685597mm
Gross weight	75kg
