Automated Screw Locking Machine for Efficient Electronics Production

Automated Screw Locking Machine for Efficient Electronics Production

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Suction Type Screw Locking Machine

Feeding:

Suction Feeding

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Desktop Operation Suction Feeding 3Axis Screw Fastening / Locking Machine

Introduction

The screw machine encompasses both a feeding system and a lock-locking system, with the feeding component—also referred to as the screw-arrangement machine or screw feeder—employing a straightforward design where screws are arranged in a linear fashion. This configuration enhances work efficiency and underscores the machine's status as a highly automated equipment, widely embraced within the electronics industry. The machine boasts compatibility with screws ranging from M1 to M6, catering to a diverse array of production needs.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Enhanced Suction Feeding for Accelerated and Efficient Operation.
2.Desktop-Friendly Design, Seamlessly Integrates with Automated Production Lines.
3.Versatile Movement Range Options: 500x500x100mm or 600x600x100mm to Suit Your Needs.
4.Multi-Screw Bin Support in Suction Mode for Enhanced Flexibility.
5.Extended Application Compatibility: Covering Screwing, Welding, Testing, Handling, and Assembly.
6.Customizable Multi-Axis & Double Platform Configurations for Optimal Performance.
7.Advanced Features Including Regional/Platform Replication, Batch Editing, and Single-Step Operation for Streamlined Workflow.
8.Offline Operation Capability via Serial Port Download, with Action Parameters Saved in a Portable Handheld Box for Quick Access.
9.High-Capacity File Storage System, Storing 1000 Screw Settings per File for Instant Recall and Effortless Setup.

About Product

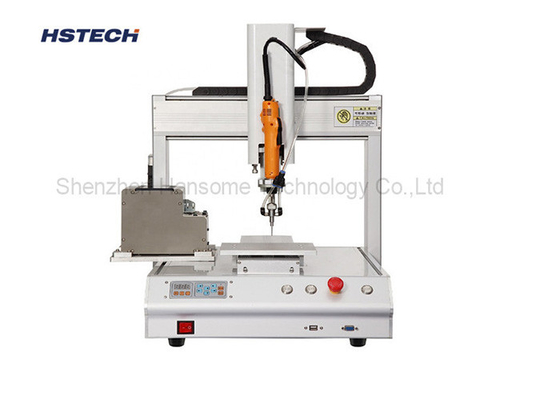

Automated Screw Locking Machine for Efficient Electronics Production 0

About Detail

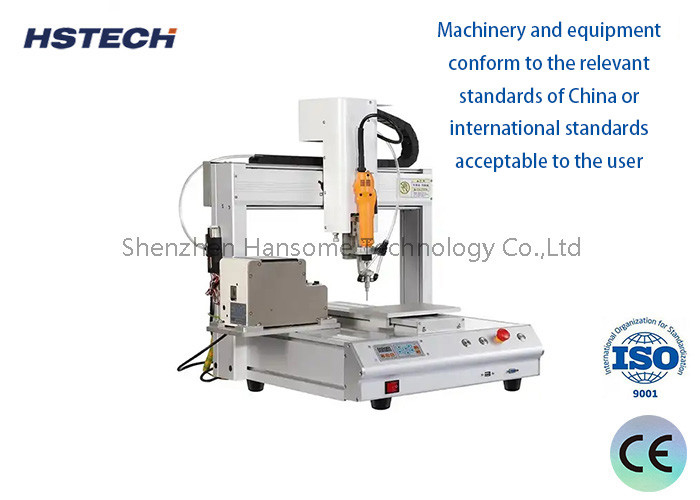

Automated Screw Locking Machine for Efficient Electronics Production 1

About Packaging

About Transport
