Centralized Control for Simplified Management of Multiple Screw Fastening Machines

Centralized Control for Simplified Management of Multiple Screw Fastening Machines

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Screw Fastening Machine

Feeding:

Suction Feeding

Screw Feeder:

Single, Or Customized Two

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Aluminum

Port:

Shenzhen

Warranty:

One Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

Simplified Management Screw Fastening Machine

Centralized Control Screw Fastening Machine

Multiple Screw Fastening Machines

Product Description

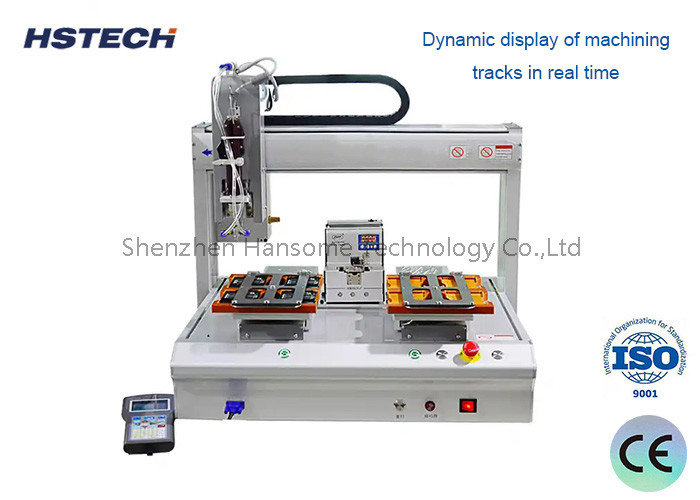

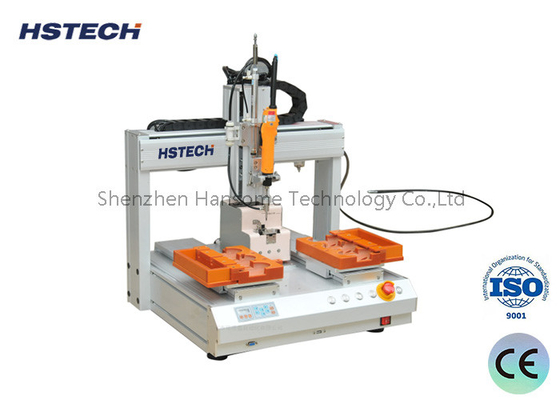

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine

Introduction

This versatile 4-axis screw-driving machine, tailored for various industries such as smartphones, personal computers, electronics, and furniture manufacturing, boasts a dual workstation design equipped with a single screwdriver and feeder. It features a seamless feeding and screw-locking mechanism that expertly arranges screws into organized rows, ultimately leading to a substantial improvement in overall production efficiency.

Features

Compact & Versatile: Effortlessly integrates into diverse production lines, optimizing space utilization and simplifying tool changes for seamless workflow continuity.
Smart QC: Intelligently detects missing fasteners or loose screws, ensuring consistently high product quality.
Dual Y-Axis Efficiency: Doubles component loading speed through alternating processes, significantly enhancing throughput.
Precise 4-Axis Workspace: Offers a versatile 500x300x300x100mm workspace for intricate, high-precision tasks.
User-Friendly Automation: Combines advanced automation with intuitive controls, enabling easy management and optimization.
Flexible Programming: Touchscreen interface and teach pendant offer customized setup options for added versatility.
Simplified Multi-Machine Management: Centralized control simplifies complex operations, easing maintenance and monitoring.
Advanced Leak Prevention: Proactively identifies missing screws, maintaining product integrity and minimizing downtime.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg
