High Speed And Accuracy 4 Axis Screw Fastening Machine For Increased Productivity

High Speed And Accuracy 4 Axis Screw Fastening Machine For Increased Productivity

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Screw Fastening Machine

Feeding:

Suction Feeding

Screw Feeder:

Single, Or Customized Two

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Aluminum

Port:

Shenzhen

Warranty:

One Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

4 Axis Screw Fastening Machine

High Speed Screw Fastening Machine

Accuracy Screw Fastening Machine

Product Description

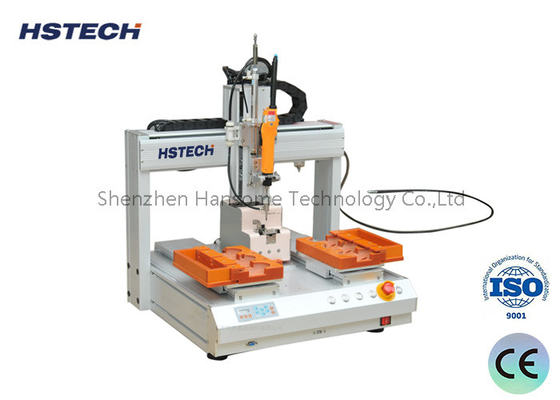

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine

Introduction

This adaptable 4-axis screw-driving system, tailored for diverse industries encompassing smartphones, personal computers, electronics, and furniture fabrication, boasts a dual-station configuration armed with a single precision screwdriver and an efficient feeder. Its seamless integration of a streamlined feeding and screw-locking mechanism meticulously arranges screws in precise rows, dramatically boosting overall production efficiency and throughput.

Features

Space-Saving Versatility: Seamlessly integrates into any production line, optimizing floor space and streamlining tool changes for a flawless workflow.
Intelligent Quality Control: Automatically detects missing fasteners, ensuring impeccable product quality.
Dual Y-Axis Acceleration: Doubles the loading speed, significantly enhancing productivity and throughput.
High-Precision 4-Axis Capability: With a generous 500x300x300x100mm workspace, accommodates intricate, high-accuracy tasks.
User-Centric Design: Advanced automation coupled with intuitive control interfaces for effortless operation.
Flexible Programming Options: Customizable setups made easy through touchscreen interface and teach pendant programming.
Centralized Management System: Simplifies operation of multiple machines from a single control point, enhancing overall efficiency.
Proactive Leak Prevention: Regular screw checks maintain product integrity, preventing costly leaks and ensuring reliability.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg
