6 Axis Screw Fastening Machine With Double Working Station Feeding Suction Feeding

Name

6 Axis Screw Fastening Machine With Double Working Station Feeding Suction Feeding

Brand Name:	HSTECH
Model Number:	HS-SL7331S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

6 Axis Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screw Feeder:

Double

Screw Driver:

Double

Moving Range:

00*300*100mm/300*300*100mm

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Feeding Suction Screw Fastening Machine

,

6 Axis Screw Fastening Machine

,

Double Working Station Screw Fastening Machine

Product Description

High Quality 6 Axis Screw Fastening Machine Screw Locking Machine With Double Working Station

Introduction

The screw machine is a 6 axis screw lock machine, it just like two 3axis screw lock machine made in one machine, so this unit machine has double working station, double screw driver and double screw feeder, it's a most efficiency machine which can locking two pcs of products at the same time.

Six-axis structure
The six-axis robot arm is designed with six programmable joints.
It provides higher flexibility and the ability to perform complex actions.

Screw installation
Equipped with a dedicated screw supply and pickup device, it can automatically complete the grasping, positioning and installation of screws.
It can adapt to screws of different sizes and types.

High precision
Adopting servo motor drive, the positioning accuracy can reach within ±0.1mm.
It can accurately install the screws to the specified position.

Intelligent control
Equipped with advanced PLC control system, it can realize intelligent programming and control of the screw installation process.
It has functions such as torque monitoring and screw missing detection to ensure the installation quality.

Automation
It can be seamlessly connected with the automated production line to realize fully automatic screw installation operations.
It greatly improves production efficiency and reduces manual operations.

Flexibility
The six-axis structure provides a wide range of motion and is suitable for complex screw installation scenarios.
Solutions can be customized and parameters adjusted for different products.

Specification

Model	HS-SL7331S
Production name	6Axis Automatic Screw Locking Machine
Moving range(X1/Y1/Z1)	300300100mm
Moving range(X2/Y2/Z2)	300300100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	1092585800mm
Machine weight	85kg

Features

1, Suction type feeding, double screw driver, double screw feeder.
2, 6 Axis operation, moving range 300*300*100mm, same as 2 units 3 axis machine assembly in one machine.
3, Can connect the automatic production line, achieve automatation production.
4, Support PC diagram image import, can import PLT and G code files.

5, Rich motion instructions and auxiliary instructions.

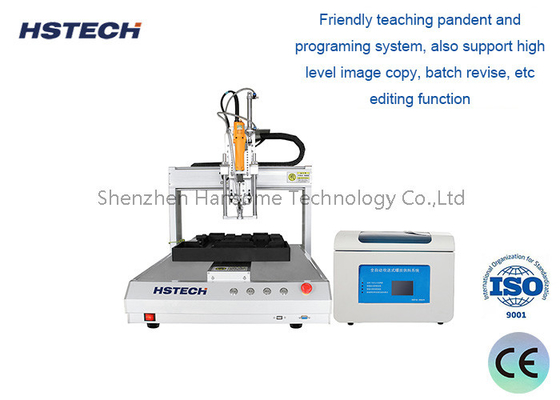

6, Friendly teaching pandent and programing system, also support high level image copy, batch revise, etc editing function.

7, Dynamic display of machining tracks in real time.

8, Friendly and quick help system, Press shift+F1 on any interface to call the help interface.

9, Processing methods support cycle machining, single machining, automatic machining, single-step machining, etc.

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

Application
Suitable for mobile phones, hard drives, keyboards, electronic toys, computers, DVD, dotsplastics, electrical appliances, communication equipment, electrical appliances, toys,electronic processing, motors, motors, parts, tablets, notebook computers, digital cameras.remote controls, walkie-talkie, etc.

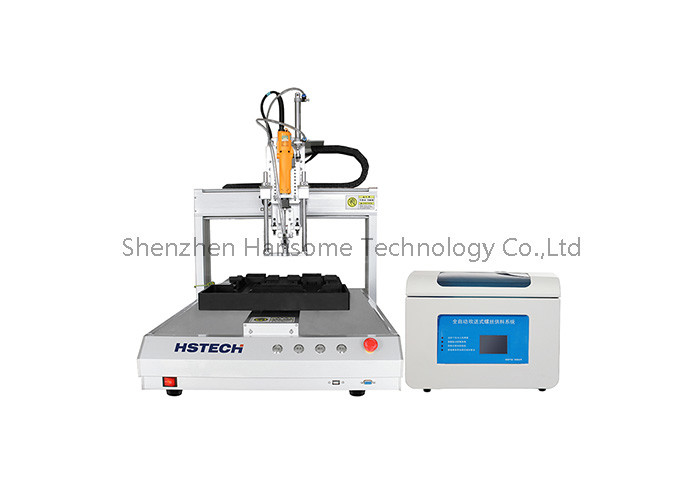

6 Axis Automatic Screw Locking Machine 0

6 Axis Automatic Screw Locking Machine 1

6 Axis Screw Fastening Machine With Double Working Station Feeding Suction Feeding 2
