Introduction

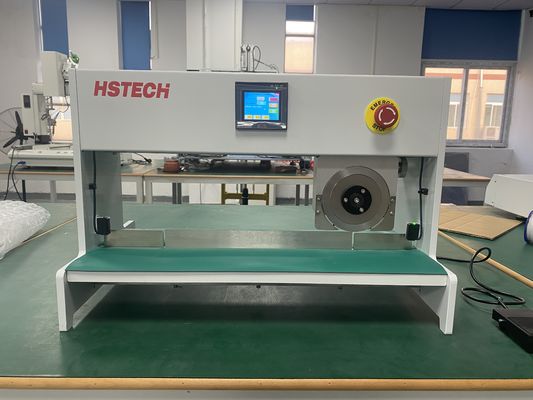

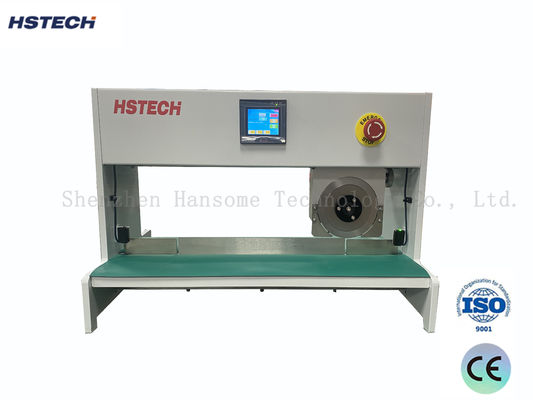

This machine(HS-203) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

High-precision separation
The blade movement technology is adopted to accurately separate the PCB along the V-Cut gap, ensuring high cutting quality and reducing damage.

High efficiency
Suitable for mass production, saving time and improving production efficiency through rapid separation.

Easy operation
Humanized design, easy to operate and maintain, suitable for employees with different technical levels.

Precise control
Adjustable cutting depth and pressure to ensure adaptation to different types of PCBs.

Safety
Safety protection measures are set to ensure the safety of operators.

Specification

PCB splitting equipment is mainly used in the following fields

Electronic product manufacturing:
Used to split multi-layer PCBs of mobile phones, tablets, electronic devices and other products.
It can accurately control the size and position of the split board to improve the product qualification rate.

Industrial automation:
Applied to the splitting of circuit boards for industrial control equipment, instruments and other products.
Improve the automation level of production lines and shorten production cycles.

Consumer electronics:
Widely used for PCB splitting of consumer electronics products such as laptops and digital cameras.
Ensure the quality of splitting and reduce the rework rate.

Medical electronics:
Applicable to the splitting of circuit boards with high precision requirements for medical equipment, diagnostic instruments, etc.
Ensure that the splitting process will not cause circuit damage.

Aerospace field:
Applied to PCB splitting with extremely high reliability requirements in fields such as avionics and aerospace equipment.
Ensure the consistency and stability of the splitting.
