 Introduction:

Introducing the RM-F550, a cutting-edge Router Machine designed for precision depaneling of entire printed circuit board assemblies (PCBA) into individual boards. This innovative machine boasts a robust and stable platform, ensuring unparalleled working precision. With a standard working platform size of 300*350mm, it offers ample space for handling various PCBA sizes.

For larger applications, the RM-F550 also features an extended platform option measuring 400*600mm, catering to a wider range of production needs. What sets this machine apart is its user-friendly "visual" programming interface, enabling rapid and accurate online programming with minimal effort. This intuitive system not only simplifies the setup process but also allows for real-time monitoring of the depaneling process, ensuring quality control at every step.

Overall, the RM-F550 represents the latest advancement in PCB Router Machine technology, combining precision, versatility, and ease of use to revolutionize the way PCBAs are depaneled.

Main features:

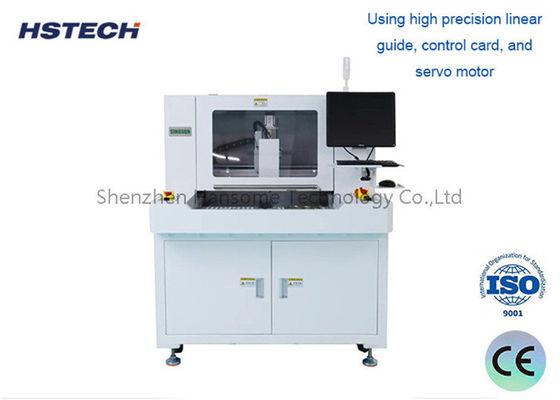

1. We offer customers state-of-the-art industrial equipment that prioritizes high performance, stability, and security. This equipment incorporates high-precision linear guides, advanced control cards, and reliable servo motors to ensure superior performance.

2. Featuring 4-axis motion control based on high-resolution CCD visual alignment, the machine utilizes a dual-platform design to significantly enhance production efficiency.

3. Equipped with a German-brand routing spindle, it boasts speeds ranging from 40,000 to 60,000 RPM, providing unmatched cutting power and precision.

4. Utilizing Taiwan Hiwin brand guides, our moving system ensures exceptional precision and smoothness during operation, ensuring consistent high-quality results.

5. The machine incorporates tool life monitoring technology, which automatically adjusts the cutter's position to an unused blade after cutting a predetermined distance, maximizing tool lifespan and reducing downtime.

6. Versatile in its applications, it is suitable for depaneling PCBs with straight, arc, and circular connections, meeting a wide range of production needs.

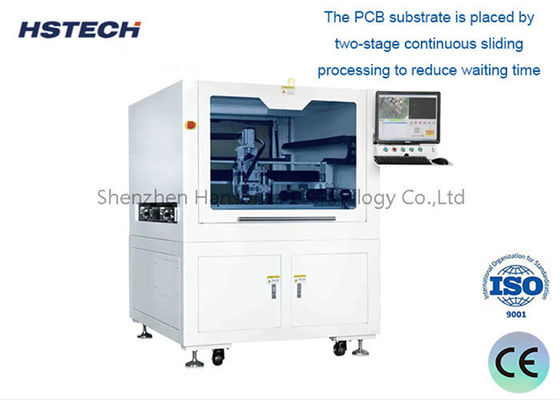

7. To further optimize production, the PCB substrate is processed through a two-stage continuous sliding mechanism, minimizing waiting time and maximizing throughput.

Key Features

Precision Cutting
Designed to accurately cut and separate individual PCBs from larger panels with minimal damage.

Offline Operation
Operates independently of the main production line, allowing for flexible setup and use without interrupting ongoing processes.

User-Friendly Interface
Often equipped with a touchscreen interface for easy programming and operation.

Multiple Cutting Techniques
Supports various cutting methods, such as routing, laser cutting, or knife cutting, depending on the machine.

Dust Extraction System
Integrated systems to minimize dust and debris during the cutting process, ensuring a clean working environment.

Material Compatibility
Capable of handling different materials, including FR-4, aluminum, and flexible PCBs.

Automated Features
Some models include features like automatic height adjustment and tool changes to enhance efficiency.

Benefits

Increased Efficiency
Reduces manual labor and speeds up the production process by automating PCB cutting.

Quality Control
Ensures high-quality cuts that reduce the likelihood of defects in the final product.

Flexibility
Allows for quick changes in production runs without requiring extensive reconfiguration of the main assembly line.

Cost-Effective
Helps minimize waste and improves overall production efficiency, which can lead to cost savings.

Applications

Electronics Manufacturing
Widely used in the production of consumer electronics, automotive components, and industrial equipment.

Prototyping
Useful for rapid prototyping of PCBs before full-scale production

Sepcfication:
