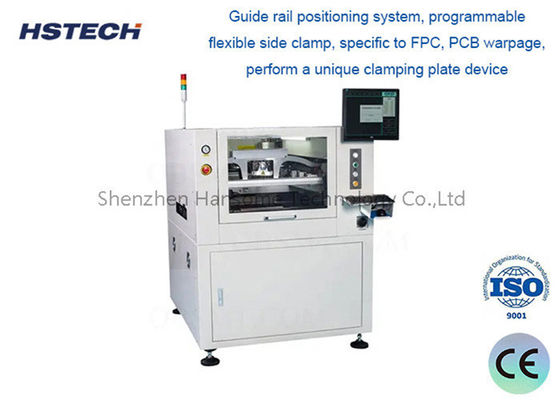

Easy Operation Solder Paste Machine for High Precision PCB Printing with Fast Cycle Time

Solder Paste Machine for High Precision PCB Printing with Fast Cycle Time and Easy Operation

Whole Machine Specification



Features


1. GKG Special Adjustable Jacking Platform: This platform is renowned for its stability and ease of adjustment, enabling swift customization of the pin jacking height to accommodate PCBs of varying thicknesses.

2. Cleaning System: The GKG cleaning system boasts a versatile trio of cleaning methods: dry, wet, and vacuum, which can be seamlessly combined to suit individual needs. For customers seeking to streamline processes, manual cleaning is also an option, reducing cleaning time and enhancing production efficiency. The innovative wiping system ensures complete stencil contact, while enhanced vacuum suction effectively eliminates residual paste from the mesh, facilitating efficient automatic cleaning. The CCD component and cleaning system operate independently, with the CCD part moving autonomously during operation to minimize servo motor load and optimize machine speed and precision.

3. Image and Optical System: This system integrates uniform ring light and high-brightness coaxial light, featuring adjustable brightness to ensure optimal recognition of all types of mark points, including rugged ones. It is compatible with PCBs of diverse colors and surface treatments such as tin plating, coppering, gold plating, tin spraying, and FPC. Leveraging GKG's patented mathematical model, it guarantees unparalleled accuracy.

4. Highly Adaptable Steel Mesh Frame Clamping System: This system excels in its ability to accommodate a wide range of screen frame sizes and facilitate rapid modular production line changes.

5. User-Friendly Operation Interface: The Windows XP/Win7-based interface fosters seamless human-machine interaction, enabling operators to quickly grasp operations, particularly during programming file navigation. Effortlessly switch between Chinese and English interfaces, and benefit from features like operation logs, fault recording, self-diagnosis, analysis prompts, and light alarms.

6. 2D Paste Printing Quality Test and Analysis: This feature meticulously inspects for defects such as shifts, insufficient paste, missing paste, and bridges, ensuring the utmost printing quality.
