Highly Advanced PCB Router Machine for Fixtures Positioning and Picking System

Introduction

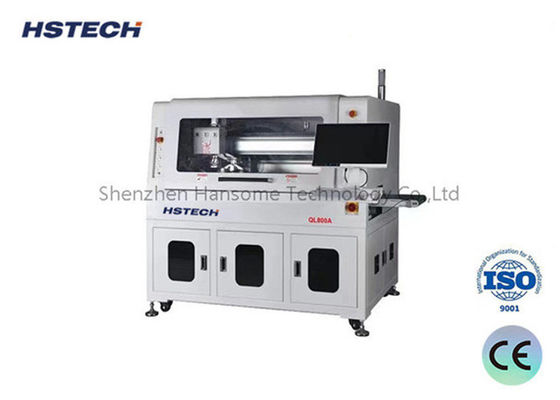

This inline automatic PCBA routing machine is designed for precision and efficiency. It employs a jig-based system to securely fix the PCBA during the automatic bottom-side routing process. Upon completion of the routing, the machine utilizes a sophisticated nozzle suction mechanism to gently pick up and accurately place both the PCBA and the jig as a single unit. This innovative feature enables the machine to expertly separate stamp holes, curved PCBs, and other irregularly connected PCB configurations, streamlining production workflows and enhancing overall productivity.

Features

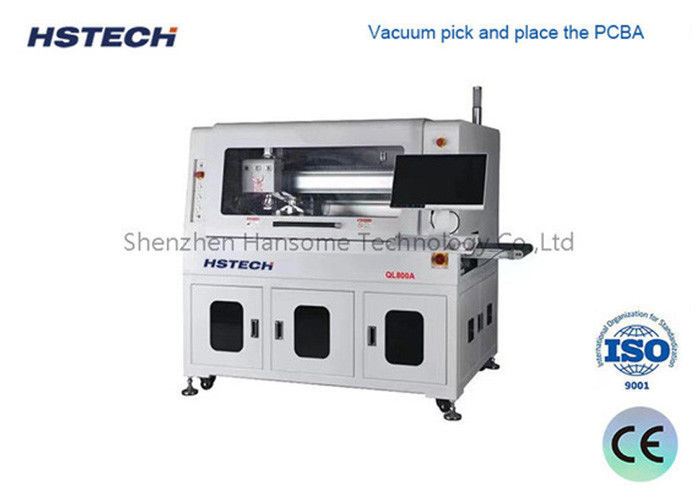

1. The PCBA is precisely picked and placed using a vacuum-based system, ensuring accurate and secure handling.

2. The machine performs bottom cutting operations with precision, tailored to the specific requirements of the PCBA.

3. It boasts a dual-platform cutting capability, enhancing productivity by allowing for simultaneous or alternating cutting processes.

4. Integrated broken knife detection ensures immediate recognition of any issues, facilitating prompt maintenance and minimizing downtime.

5. The machine seamlessly connects to automatic production lines, facilitating a smooth and efficient workflow from start to finish.

6. Equipped with SPC (Statistical Process Control) statistics functionality, it integrates seamlessly with ERP systems, providing valuable insights into production performance and facilitating data-driven decision-making.

7. Optional features include automatic tool change for added versatility, an explosion-proof vacuum cleaner for enhanced safety, and air volume monitoring to maintain optimal suction performance.

Technical details

Machine size

Bottom size routing and dust collector

Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.

Omnipotence vacuum suction chuck for picking, placing , unloading, and production.

Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
