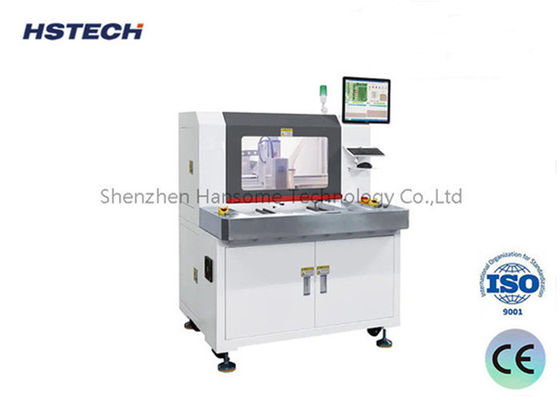

±0.03 Cutting Accuracy Versatile PCB Router Machine for Straight Arc and Circular Boards

Name: ±0.03 Cutting Accuracy Versatile PCB Router Machine for Straight Arc and Circular Boards
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: RM-F550
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	RM-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Router Machine

Platform:

Double

Working Platform:

300*350mm

Repeat Accuracy:

±0.01

Cutting Accuracy:

±0.03

Machine Dimension:

1200*1050*1440mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

20 sets per month

Highlight:

Straight Arc PCB Router Machine

Versatile PCB Router Machine

±0.03 Cutting Accuracy PCB Router Machine

Product Description

High Speed Curve PCB Cutting Machine SMT Cutter For PCB Production Line

Machine introduction

Introducing the innovative RM-F550 Router Machine, designed for precision depaneling of printed circuit board assemblies (PCBA). This advanced machine boasts a rock-solid platform, ensuring impeccable working precision on a standard 300*350mm workspace.

For larger projects, an expanded 400*600mm platform option is available. The RM-F550 simplifies operations with user-friendly "visual" programming, enabling rapid and precise online setup, while also monitoring the depaneling process for seamless execution.

Main features

Offer customers premium industrial equipment, featuring high performance, stability, and security, utilizing top-notch components like high-precision linear guides, control cards, and servo motors.
Enhance production efficiency with 4-axis motion control, based on high-resolution CCD visual alignment, and a dual-platform design.
Equipped with a German-brand routing spindle, delivering speeds ranging from 40,000 to 60,000 RPM for superior cutting performance.
Ensure precision and smoothness in the moving system with Taiwan Hiwin brand guides.
Implement tool life monitoring. The cutter automatically adjusts to a new, uncut blade position after traversing a predetermined distance, optimizing tool usage.

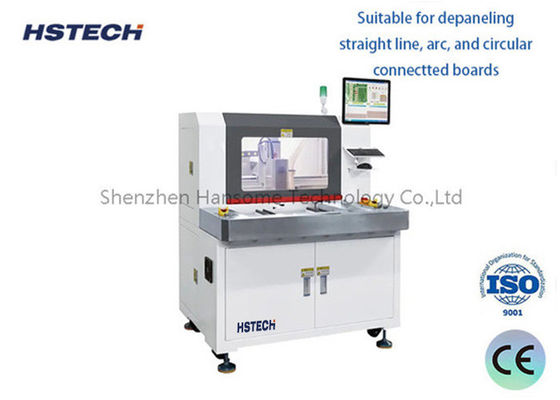

Versatile for depaneling various PCB layouts, including straight lines, arcs, and circular connections.
Streamline production by adopting a two-stage continuous sliding processing system for PCB substrate placement, minimizing wait time and maximizing output.

Sepcfication

Model	RM-F328
Structure	Single Spindle,double platform
Efficienty cutting length	300*350mm
Cutting types	Straight line, arc, circular
Moving speed	X/Y axis 1000mm/s,Z axis 500mm/s
Dust Collection method	Upper collection
Spindle	40000~60000rpm
Routing Spindle	Max60000rpm
Cutting speed	1-100mm/s adjustment
Cutting accuracy	±0.03mm
Repeat accuracy	±0.01mm
Programming	colorful CCD
External connect	USB
Router kit	milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply	380V
Machine power	2000W
Dust collector size	600470730mm
Dust collector power	2.2Kw,380V
Dust collector air pressure	4-6KG/cm³
Security door	Manual door
Error alarm	Yes
Program method	Self programing,camera controlled by keyboard and mouser

Machine details

±0.03 Cutting Accuracy Versatile PCB Router Machine for Straight Arc and Circular Boards 0
