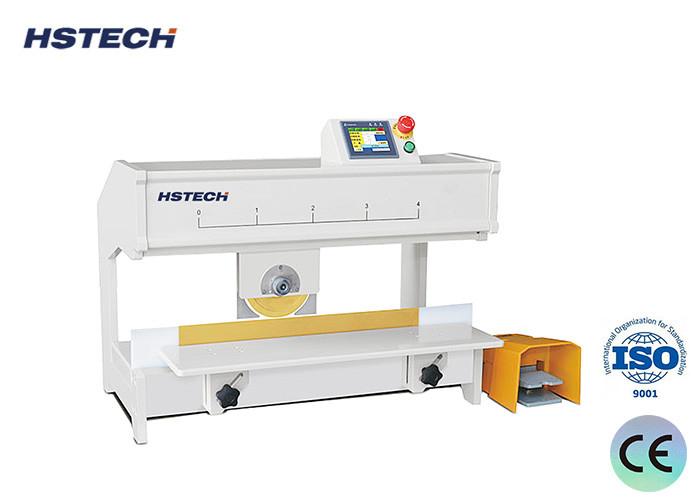

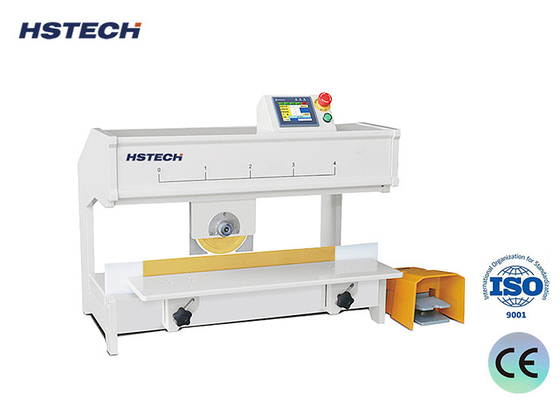

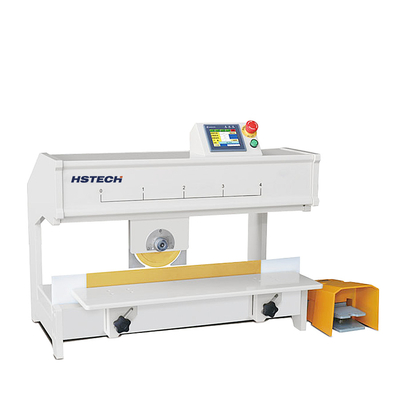

Compact And Space-Saving PCB Router Machine With Dust Collector Windows Operation

Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine

Introduce

The PCB Router Machine stands as a prevalent tool in the realm of printed circuit board (PCB) cutting and separation. Here's a comprehensive overview of its features and capabilities:

The PCB Router Machine is specifically designed for precision cutting and efficient separation of PCBs. It incorporates advanced technologies to ensure accurate and reliable results in a variety of manufacturing settings. The machine's robust construction, combined with its intuitive control system, allows for seamless integration into production lines, enhancing overall productivity and quality.

1. Equipment Composition: The PCB Router comprises a frame, workbench, cutting tools, control & monitoring system, and motion control system. The frame supports the structure, the workbench holds PCBs, tools cut, the control system sets parameters & monitors, and the motion system directs tool movements.

2. Automated Cutting: With preset cutting paths, speeds, depths, etc., the PCB Router automates tasks, minimizing manual input and enhancing productivity & accuracy.

3. Versatile Cutting Methods: Adapts to linear, V-shaped, circular, and other cutting techniques to cater to various PCB designs.

4. Precision Cutting: Employs precise tools and technology for accurate cutting, adhering to preset paths & specifications, ensuring quality consistency.

5. Deburring Capability: Post-cutting, it deburrs edges, removing burrs, residues, enhancing board quality & appearance.

6. Efficiency & Cost-Effectiveness: Automated operation & precision cutting expedite production, minimizing human resources & time, reducing waste & damage, translating to cost savings.

Specification

Features

1. High-Speed Cutting: The PCB Router Machine offers rapid cutting capabilities regardless of quantity, ensuring economic efficiency in large-scale production.

2. Precision Alignment: By utilizing a touchscreen interface to set the cutting distance, the machine precisely aligns with V-slots in PCBs, guaranteeing accurate and error-free cutting strokes.

3. Panel Splitting with Stress Reduction: The combined use of moving and stationary blades during panel splitting minimizes stress on PCBs, effectively preventing fractures at welding points, ensuring structural integrity.

4. Static PCB, Dynamic Blade: During the splitting process, the PCB remains stationary while the blade moves back and forth, ensuring consistent quality and precision.

5. Enhanced Efficiency & Quality: Compared to manual operation, the machine significantly reduces stress on welding spots, thereby improving both working efficiency and product quality.

6. Flexible Cutting Distance: With a freely adjustable cutting distance range of 1 to 100m, the machine caters to diverse customer requirements and enhances operational efficiency.

7. Customizable Starting Position: The ability to freely set the starting cutting position ensures optimized cutting patterns, contributing to the machine's long-term durability and lifespan.

8. Counting Function for Data Management: Equipped with a counting feature, the machine facilitates post-production data analysis and reporting, enhancing production management and traceability.

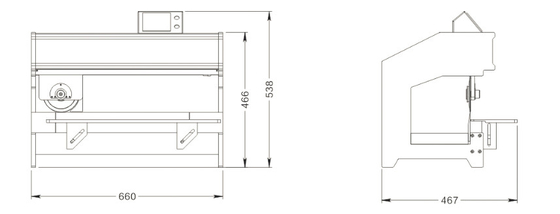

Machine Size

About Packaging
