PLC Controlled Mini PCB Depaneling Equipment Improve Efficiency and Productivity

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

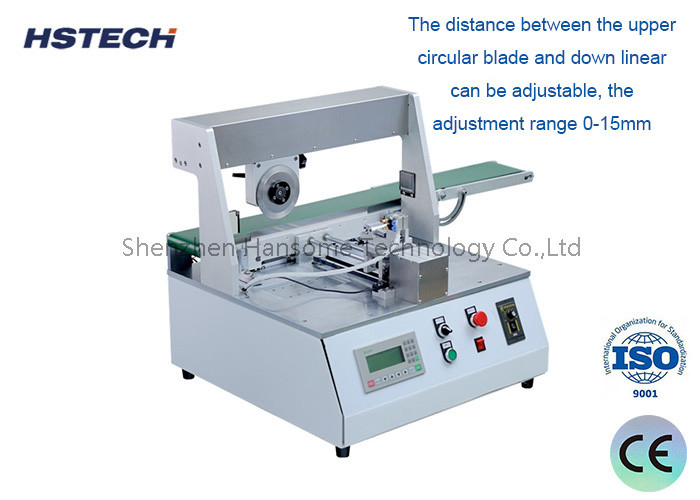

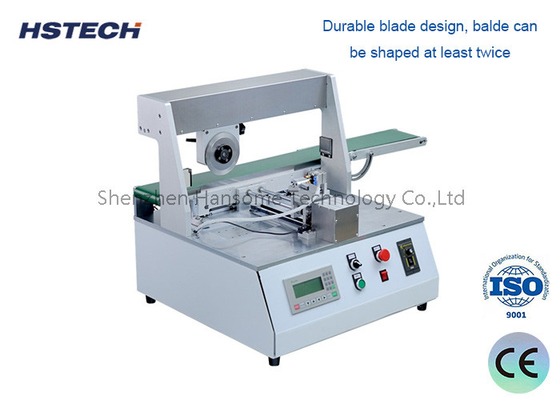

This advanced automated PCB depaneling system incorporates a sophisticated automatic feeding mechanism. It utilizes a unique combination of an upper circular blade and a bottom linear blade, ensuring seamless integration. Throughout the separation process, the PCB remains steadfastly secured while the circular blade rotates smoothly, executing the decoupling task with exceptional efficiency.

Advantages:

The conventional PCB separator, heavily reliant on manual operations, suffers from inefficiency and high labor demands. However, the revolutionary automatic PCB separator has transformed the industry. Equipped with a microcomputer-controlled auto-feeding system, it seamlessly adapts to various board sizes and integrates effortlessly with loading equipment. This automation not only reduces labor costs but also significantly enhances productivity, streamlines workflows, and optimizes overall output.

The main features are as follows:

1. Seamless Autonomous PCB Separation: The machine executes the entire PCB separation process autonomously, from initial input to precise cutting and final output, ensuring uninterrupted and efficient automation throughout.

2. Lightning-Fast Cutting Capability: Boasting high-speed CNC tools, it swiftly dissects boards, achieving remarkable cut rates of multiple cuts per minute, thereby bolstering overall productivity.

3. Unparalleled Cutting Precision: Equipped with advanced high-precision sensors and servo motor control, it ensures board separation within a tight margin of ±0.05mm, delivering exceptional cutting accuracy and quality.

4. Automated Material Handling: An integrated silo and conveyor belt system streamline PCB board feeding and unloading processes, minimizing manual intervention and maximizing process efficiency.

5. Intelligent Control and Maintenance: Leveraging a PLC-based control system, it enables custom programming for diverse board sizes and incorporates fault self-diagnosis for proactive maintenance, ensuring uninterrupted operation.

6. User-Friendly Design: Featuring an intuitive user interface, it simplifies operation for all skill levels. Coupled with a compact and ergonomic design, it facilitates easy maintenance, thereby extending the equipment's lifespan and reducing downtime.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
