Highly Stable and Versatile PCB Router Machine with 300*350mm Working Platform

PCB Router Machine - CCD Visual Aligement, Hiwin Guide, Tool Life Monitor, 0.5-3mm Cutting

Machine introduction

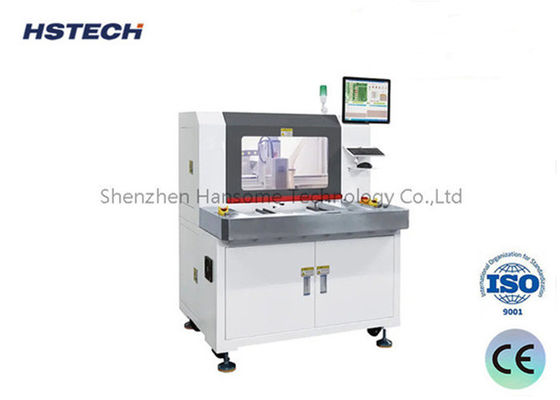

The RM-F550 Router Machine represents the pinnacle of technology in precision depaneling of PCBAs, expertly dissecting whole assemblies into individual boards. It is built upon a rock-solid platform that guarantees unparalleled accuracy, supported by a standard workspace of 300*350mm, easily accommodating a wide range of PCBA dimensions.

For larger-scale endeavors, the RM-F550 flexes its versatility with an optional extended platform measuring 400*600mm, accommodating diverse production requirements with ease. What's more, it revolutionizes programming with intuitive "visual" capabilities, streamlining the online setup process for rapid, error-free configuration. This innovative feature not only simplifies operations but also enables real-time process monitoring, guaranteeing consistent, high-quality results at every stage of the depaneling journey.

Main features

1. We pride ourselves in offering premium industrial equipment that stands out in terms of performance, stability, and security. This is achieved by seamlessly integrating high-precision linear guides, cutting-edge control cards, and dependable servo motors, ensuring exceptional quality and reliability in every aspect.

2. Harnessing the power of high-resolution CCD visual alignment technology, our 4-axis motion control system leverages a dual-platform design to maximize production efficiency. This setup fosters seamless transitions and uninterrupted operation, streamlining the entire process.

3. Boasting a German-crafted routing spindle, the machine operates within an impressive rotational speed range of 40,000 to 60,000 RPM, guaranteeing precision and efficiency in every cut.

4. For unparalleled precision and smooth motion, we rely on Taiwan Hiwin brand guides. These premium components ensure a flawless and reliable moving system, enhancing the overall performance of our equipment.

5. Introducing tool life monitoring, a smart feature that intelligently adjusts the cutter position upon traversing a predetermined distance. This innovative system ensures uninterrupted operation by seamlessly switching to an uncut blade, minimizing downtime and maximizing productivity.

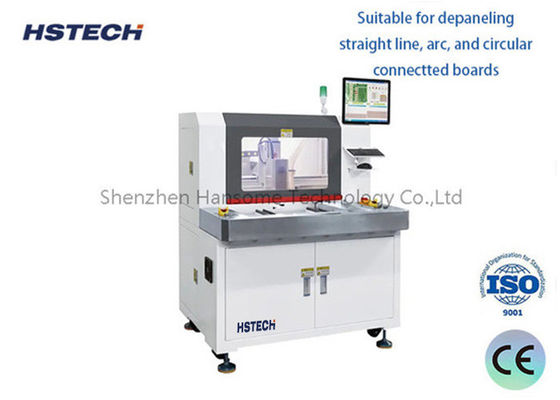

6. Versatility at its finest, our machine adeptly handles depaneling of PCBs with straight, arc, and circular connections, catering to a diverse range of production needs.

7. To further refine production flow, we incorporate a two-stage continuous sliding system for PCB substrate processing. This innovative design minimizes waiting time and maximizes throughput, fostering a more efficient and productive workflow from start to finish.

Sepcfication

Machine details

About Packaging
