Advanced Inline V-Cut PCB Depaneling Equipment for Tic Tac Toe Connected PCB Panel

Linear and Circular Blade Fixture Equipped Inline Vcut PCB Depaneling Machine

Description

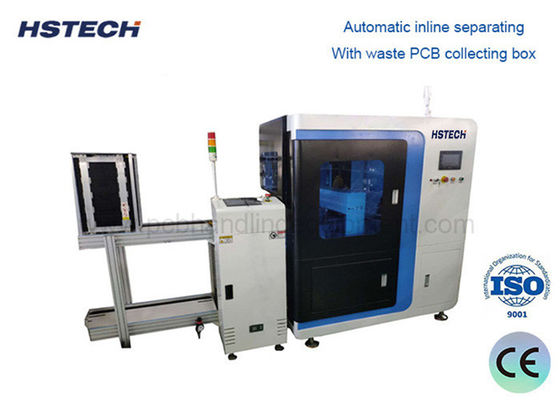

This PCB separator represents the epitome of advanced automation in V-cut technology, revolutionizing the PCB separation process. Incorporating a seamless PCB loader, it automates board loading with effortless precision. Driven by a precision belt system, it flawlessly conveys PCBs through a harmonious blend of linear and circular blades, executing automatic separation along both X and Y axes with unparalleled accuracy.

Effortlessly, the operator simply places the boards in designated magazines, and the machine efficiently handles the rest, demonstrating the pinnacle of hands-off operation. Upon completion, neatly segmented PCB units await retrieval at the machine's output, showcasing the height of automation in PCB separation. This machine guarantees maximum efficiency and minimal human intervention, setting the standard for streamlined PCB processing.

Features

1. Seamless Inline Automation: This machine streamlines PCB separation with fully automated inline capabilities, eliminating manual intervention and enhancing process continuity.

2. Autonomous Board Feeding & Multi-Directional V-Cut: Equipped with a sophisticated PCB loader, it autonomously feeds boards and precisely executes V-cut separation across both X and Y axes, guaranteeing efficient and accurate depaneling.

3. Convenient Waste Management: A dedicated waste PCB collection box is seamlessly integrated, simplifying the disposal of by-products generated during separation, maintaining workplace tidiness.

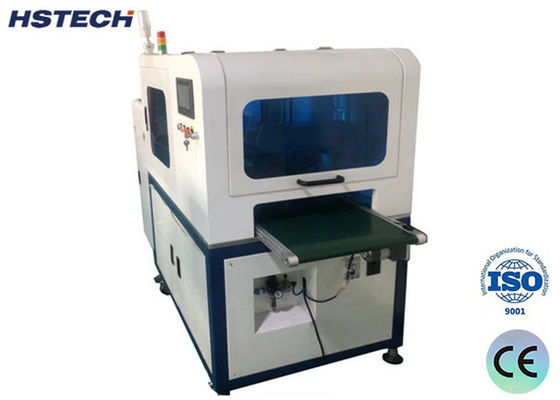

4. Post-Separation Sorting Conveyor: An efficient transporting belt systematically gathers and organizes separated PCB units, readying them for subsequent processing or packaging stages.

5. PLC-Orchestrated Precision: Leveraging PLC technology, the machine meticulously orchestrates the depaneling process, offering seamless integration with PCB loaders for a comprehensively automated workflow from input to output.

6. Labor Optimization & Efficiency Boost: By automating PCB loading and separation, this machine dramatically reduces manual labor requirements, augmenting productivity, efficiency, and precision levels beyond manual capabilities.
