High-End Solder Paste Machine for High-Precision Printing Process

Brand Name:	GKG
Model Number:	G9+
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,TUV,ROHS

Product Name:

High-end Solder Paste Printing Machine

Other Name:

Automatic Screen Printing Machine

PCB Size:

50x50~450x340mm

Transport Height:

900±40mm

Air Pressure:

4-6kgf/cm³

PCB Thickness:

0.4-6mm

Max Board Weight:

5kg

Machine Weight:

1000kg

Packaging Details:

Wooden Package

Supply Ability:

100 sets per month

Highlight:

High Precision Solder Paste Machine

High End Solder Paste Machine

Product Description

Automatic Solder Paste Printer for Industrial 4.0 MES System

Introduction

The G9+ Automatic Solder Paste Printing Machine is a premium equipment tailored for high-end SMT applications, capable of fulfilling the demanding printing processes of 03015 components, 0.25 pitch, as well as achieving high precision and high-speed operations.

Specification

Model	G9+
Max PCB Size	450x340mm
Min PCB size	50x50mm
PCB thickness	0.4-6mm
Max board weight	5kg
Transport height	900±40mm
Board edge gap	2.5mm
Board height	15mm
Transport direction	L-R,R-L
Transport speed	max 1500mm/s, program control
Transport method	One stage
WIdth adjustment	automatic
I/O interface	SMEMA
PCB positioning (support method)	Magnetic pin/support block/manual up-down table
PCB clamping system	Patented over the top clamping
	Side clamping
	Adsorption function
Print snap-off	0-20mm
Print mode	one/twice
Print Speed	10-200mm/sec
Print Mode	One /Twice
Squeegee Type	Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure	0.5-10kg
Template fram size	470370mm~737737mm(20-40thickness)
Cleaning System	Droops of rain type cleaning system
	Reinforced vacuum absorption
	Dry, wet vacuum three modes
	Back and forth cleaning
CCD FOV	10x8mm
Fiducial mark types	Standard Fiducial mark shape
	Pad
	Hole
Camera system	Look up/down optics structure
	CCD digital camera
	Geometry pattern match

Machine Performance

Model	G9+
Repeat position accuracy	±12.5um@6,CPK≥2.0
Print accuracy	±18um@6,CPK≥2.0
Print cycle time	＜7.5 sec
Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision

Whole Machine Specification

Power supply	AC:220±10%,50/60HZ, 3.0KW
Air pressure	4~6 kgf/cm²
Air consumption	around 5L/min
Operating temperature	-20℃~+45℃
Operating humidity	30%~60%
Machine Dimensions(without tower light)	1172(L) x 1385(W) x 1530 (H)mm
Machine Weight	Approx: around 1000Kg

Features

CCD Digital System: Featuring an entirely new optical path system, the CCD digital system provides uniform circular illumination and high-brightness coaxial lighting. With dual light source systems, brightness can be infinitely adjusted, enabling easy recognition of diverse mark points (including uneven ones) on tin-plated, copper-plated, silver-plated, hot air-soldered, FPC, and various PCB colors.

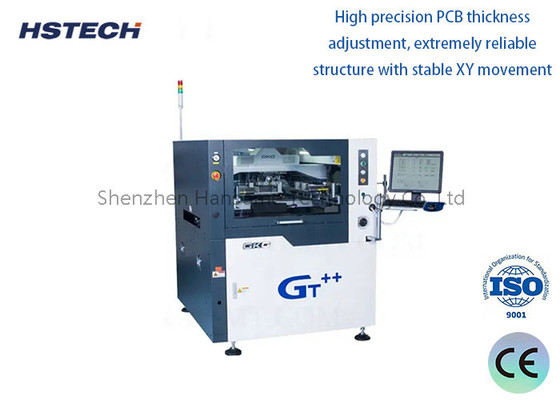

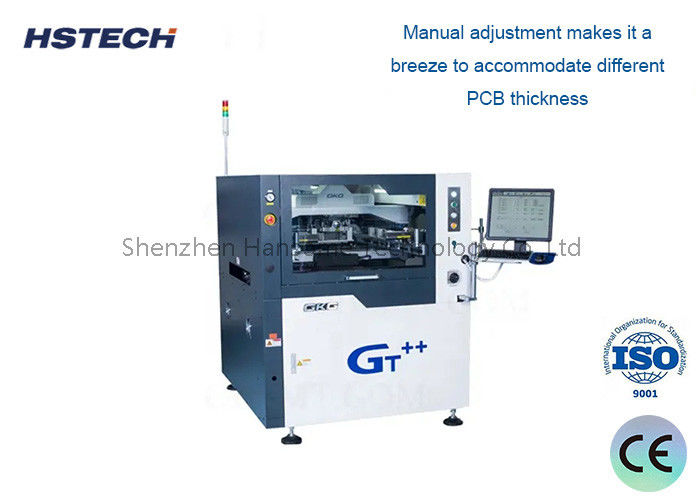

High-Precision PCB Thickness Adjustment: Boasting an extremely reliable structure with stable XY movement, manual adjustment makes accommodating different PCB thicknesses a breeze.
Guide Rail Positioning System: The innovative guide rail positioning system includes a detachable pattern guide rail and a programmable flexible side clamp, specially designed for FPC and PCB warpage. A unique clamping plate device ensures precise positioning, and software programming allows automatic stretching and retraction to accommodate varying PCB thicknesses.
Revolutionary Squeegee Structure Design: The new squeegee structure adopts a comprehensive system that enhances stability and extends the lifespan.
High-Speed Stencil Cleaning: The downward dispensing cleaning structure effectively prevents clogged openings, a common cause of ineffective cleaning. The length of solvent dispensed can be easily adjusted through software control.
New Multi-Function Interface: The interface is designed for simplicity, clarity, and user-friendliness. It includes real-time temperature and humidity monitoring functions, making it easy for users to monitor and adjust conditions as needed.
