1200W Automatic Screw Fastening Equipment With MES Connection and 300250200 Axis Traveling Distance for PCB Assembly

Brand Name:	HSTECH
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Axis Traveling Distance:

300*250*200

Locking Product Size:

240*250

Driven Method:

Servo Motor

Locked Time:

1.5-3S

Power Supply Voltage:

AC220V

Power:

1200W

Total Weight:

200KG

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

10 PC/Month

Highlight:

1200W Screw Fastening Machine

MES Connection Automatic Screw Fastening Equipment

300250200 Axis Traveling Distance PCB Screw Fastening Machine

Product Description

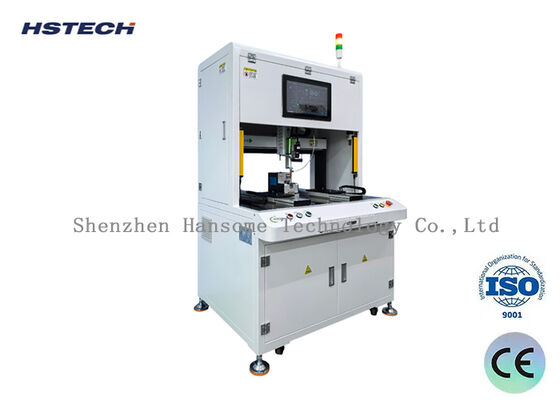

1200W PC Intelligent Grounding Automatic Screw Fastening Equipment With MES Connection

A fully or semi-automatic intelligent device specifically engineered for fastening grounding screws on printed circuit boards. This highly specialized automated industrial equipment serves a critical process step in electronics manufacturing.

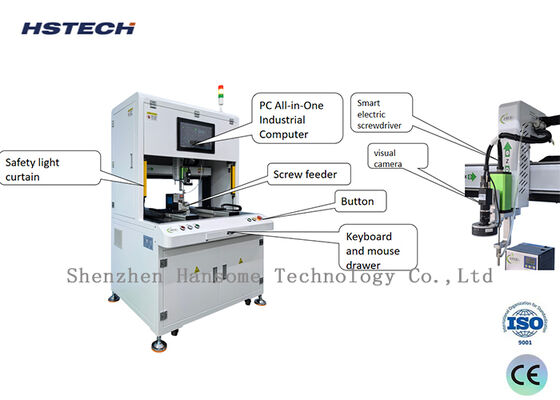

Main Components

Motion Control System

Core: High-precision multi-axis robotic arm (typically three- or four-axis desktop robot) or precision module.
Function: Drives the screwdriver bit to rapidly and accurately move to program-defined coordinates in X, Y, and Z directions.

Vision Positioning System

Core: Industrial camera and image processing software.
Function: The key intelligence component. Before fastening, the camera photographs the PCB, and image recognition technology precisely locates actual screw hole positions, correcting minor deviations from PCB materials or fixture placement to ensure vertical screw insertion.

Automatic Screw Feeding System

Core: Screw feeder, feeding tube, vacuum suction or air-blowing screw picking mechanism.
Function: Automatically sorts and orients scattered screws, delivering them via pipeline to the tightening bit for uninterrupted continuous operation.

Tightening Actuation Unit

Core: Servo electric screwdriver or torque-controlled electric screwdriver.
Function: Performs tightening action with precise control of torque and angle, ensuring each screw meets process requirements—neither too tight (damaging threads or PCB) nor too loose (causing poor grounding).

Intelligent Detection and Feedback System

Core: Torque sensor, encoder, pressure sensor.
Function: Monitors final torque, rotation angle, and pressing depth in real-time. Detects stripped threads, loose screws, or missed screws, immediately alarming and recording defect locations for 100% online quality inspection.

Software and HMI (Human-Machine Interface)

Core: Equipment control software.
Function: Stores and manages locking programs (coordinates, torque, sequence) for different products, provides user-friendly interface, and generates production reports (output, pass rate, defect types).

Technical Specifications

Parameter	Specification
Axis Traveling Distance	300×250×200 mm
Locking Product Size	240×250 mm
Driven Method	Servo Motor
Positioning Accuracy	±0.03 mm
Screw Feeding Method	Suction type (or air blowing type)
Locked Time	1.5-3 seconds
Power Supply Voltage	AC220V
Power	1200W
Compressed Air Supply	0.4-0.6 MPA
Total Weight	200 KG
Electric Screwdriver Quantity	1

Simple User Interface with Powerful Functionality

Key Equipment Advantages

Extremely High Quality Consistency: Eliminates manual operation instability, ensuring precise and reliable tightening torque for every grounding screw, guaranteeing stable grounding impedance and improved product electrical performance.

Exceptional Production Efficiency: Tightening speed significantly faster than manual labor (typically 1-2 seconds per screw) with 24-hour continuous operation capability.

Significant Cost Reduction: Saves substantial labor costs while preventing subsequent test failures and product rework expenses from poor grounding.

Comprehensive Quality Traceability: Records tightening data for every screw of each product, enabling complete production data tracking.

Reduced Labor Intensity: Frees workers from repetitive, tedious tasks requiring specialized skills.

Typical Applications

Communication Equipment: Server, router, and base station PCB metal casings and shielding covers

Computers & Consumer Electronics: Motherboards, graphics cards, and power boards requiring chassis or heatsink grounding

Industrial Control: Industrial computers and PLC module grounding and tightening

Automotive Electronics: Electronic control units with extreme reliability and consistency requirements

New Energy: Control board grounding for photovoltaic inverters and energy storage systems
