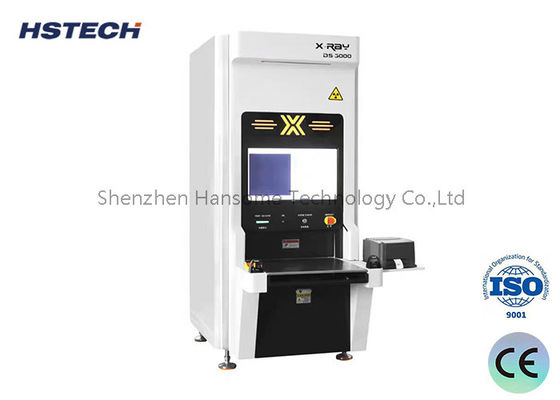

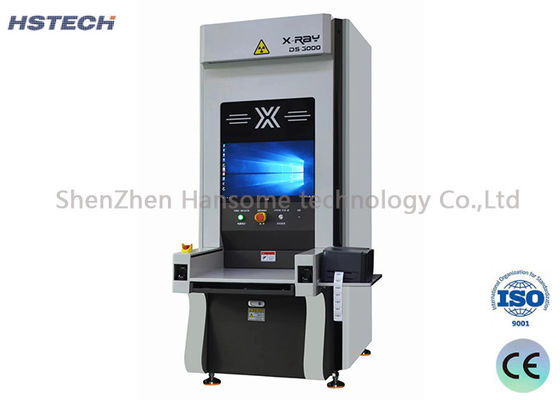

Semi-Automatic X-Ray SMD Counter for Reel Components | High-Speed SMT Counting Machine

Brand Name:	HSTECH
Model Number:	DS-3000
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

X Ray SMD Chip Counter

X Ray Type:

Panasonic

X Ray Tube Vltage:

80kV

Testing Unit:

HD Digital Table

X Ray Tube Current:

70A

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Product Description

Semi-Automatic X-Ray SMD Counter for Reel Components | High-Speed SMT Counting Machine

High-speed semi-automatic X-ray SMD counter for accurate reel component counting. Supports 7-17 inch reels, barcode scanning, and label printing. Improve warehouse efficiency and reduce manual errors.

Product Overview

The Semi-Automatic Offline X-Ray SMD Counter is designed for fast and accurate counting of SMD components on tape reels in SMT production and warehouse management. With advanced X-ray imaging technology, the machine can scan reels and automatically calculate component quantity without opening packaging. It significantly reduces manual counting errors and improves efficiency in material handling.

Operators only need to load the reel, press start, and the system will automatically complete scanning, counting, and data transmission to the label printer—ensuring accurate and traceable inventory management.

Key Features

High-Precision X-Ray Detection System

Equipped with 80KV enclosed X-ray tube, providing stable performance and maintenance-free operation.

Advanced Imaging Technology

Uses 17-inch high-resolution digital flat panel detector, ensuring clear imaging and accurate counting results.

Ultra-Fast Counting Speed

Count 4 reels (7 inch) or 1 reel (15 inch) in just 10 seconds
Dramatically improves warehouse throughput

Wide Reel Compatibility

Supports up to 17-inch (430mm) reels, including:

Moisture-proof packaged reels
JEDEC standard packaging

Intelligent AI Counting Algorithm

Built-in deep learning algorithm ensures:

Higher counting accuracy
Continuous optimization via cloud data
Adaptation to different component types

Barcode Scanning + Label Printing Integration

Automatically scans barcode while counting
Instantly prints updated labels with correct quantity
Eliminates manual data entry errors

MES / ERP / WMS System Integration

Supports seamless connection with factory systems:

Real-time data synchronization
Digital warehouse management
Improved traceability and inventory control

Specifications

Product name	Offline X-Ray SMD Counter
Model	DS-3000
X Ray Tube	Type: Enclose type, micro focal spot Tube voltage: 80kV Tube current: 700μA Focal spot size: 30μm
Flat-table testing probe	Type: HD digital table Effective area: 430430mm Pixel size: 140μm Resolution: 30723072
Tape reel	Max size: 17 inch(approx 430mm) Max height: 85mm Min components: 01005
Counting speed	10 seconds each time
Counting accuracy	>99.95%
Functions	Bar-code auto scanning: Support QR code,bar-code Label printer: Print corresponding label Management system: MES,ERP,WMS
Machine basic information	Size: 106713351968mm Weight: 950KG Power supply: AC110V/220V,50/60Hz Max power: 800W Industrial PC: I7-6700 CPU, 8G RAM, 240GB SSD Monitor: 24inch HDMI display
Security	Radiation: None,standard <1uSv/hr Rear side door lock: Once open the door, the X ray tube power off immediately Table anti-collision protection: When the table extended, there is a steel plate around it to prevent deformation by impact Safety grating: Equipped Emergency button: Equipped

Technical Advantages

No need to open reel packaging
Eliminates manual counting errors
Reduces labor cost
Improves warehouse efficiency
Ensures accurate inventory data
Shortens material in/out time

Applications

This X-ray SMD counter is widely used in:

SMT production lines
Electronics manufacturing factories
Component warehouses
EMS providers
Automotive electronics production
Semiconductor and PCB assembly

Why Choose Our X-Ray SMD Counter?

Traditional manual counting methods often cause:

Counting errors and inventory mismatch
Time-consuming operations
High labor dependency
Packaging damage

Our X-ray solution provides:

Fast and accurate counting
Fully traceable data
Reduced human error
Higher operational efficiency

Ready to Improve Your SMT Counting Efficiency?

Contact us today to learn more about how our Semi-Automatic X-Ray SMD Counter can transform your warehouse operations and eliminate counting errors.
