Double Platform 3 Axis Screw Fastening Machine Screw Lock Machine For Industrial Applications

Double Platform 3 Axis Screw Fastening Machine Screw Lock Machine For Industrial Applications

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-Up Screw

Axis:

3 Axis

Material:

Main Aluminum

Screws:

M1-M6

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

100 PC/Month

Highlight:

3 axis screw fastening machine

double platform screw lock machine

industrial screw fastening machine

Product Description

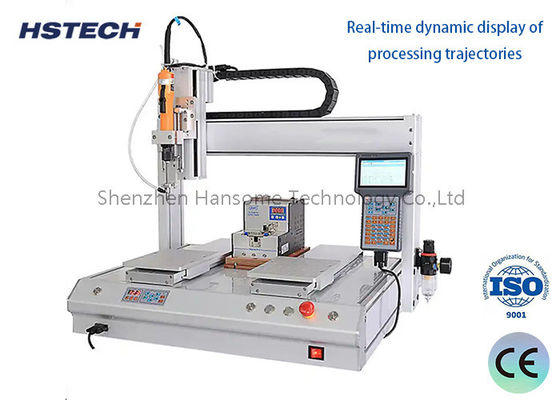

Double Platform 3 Axis Screw Fastening Machine

Our HS-SL series Automatic Screw Fastening Machine is a high-efficiency, desktop-type automated screw locking solution designed for industrial applications. This machine replaces manual screw fastening to significantly improve production efficiency while ensuring consistent, precise results.

Core Specifications

Parameter	HS-SL551S	HS-SL661S
Moving Range (X/Y/Z)	500×500×100mm	600×600×100mm
X/Y Axis Speed	1–800mm/s (Closed-loop motor)	1–800mm/s (Closed-loop motor)
Z Axis Speed	1–300mm/s (Closed-loop motor)	1–300mm/s (Closed-loop motor)
X/Y Axis Max Load	5KG	5KG
Z Axis Max Load	3KG	3KG
Power Supply	AC110V/220V, 50/60Hz	AC110V/220V, 50/60Hz
Repeat Accuracy	±0.02mm	±0.02mm
Document Support	CAD / CorelDraw	CAD / CorelDraw
Suitable Screws	M1–M5	M1–M5
Machine Dimension	746×785×800mm	845×885×800mm
Machine Weight	50kg	55kg

Main Components Brand

Motor: Shinano
Guide Rail: Hiwin
Photoelectric Switch: Omron
Power Supply: Meanwell

Key Features

Suction-Type Feeding: Faster and more efficient screw supply, minimizing downtime
Desktop Design: Visible and easy operation with seamless integration into automated production lines
Two Stroke Options: Choose between 500×500×100mm or 600×600×100mm working ranges
Multi-Screw Bin Support: Compatible with multiple screw bins in suction mode for versatile applications
Extended Functionality: Supports screw dispensing, welding, testing, handling, and assembly
Multi-Axis & Dual-Platform Options: Available with dual-platform configurations for enhanced productivity
User-Friendly Programming: Features regional array replication, platform replication, batch editing, and single-step operation
Offline Operation Support: Program parameters can be edited and downloaded via serial port
Massive File Storage: Stores hundreds of processing files, each supporting up to 1000 screw positions

Application Scenarios

Electronics Assembly: Smartphones, laptops, PCBs, and consumer electronics
Home Appliances: Small kitchen appliances, remote controls, and power adapters
Automotive Components: Sensors, control modules, and interior parts
Telecommunication Devices: Routers, modems, and communication equipment
Toys & Consumer Goods: Plastic toys, electronic gadgets, and daily-use products
